COBRA NC 0400 B

Busch COBRA NC 0400 B – dry screw vacuum pump

The Busch COBRA NC 0400 B is a dry screw vacuum pump. The nominal pumping speed is 350 m³/h (50 Hz) or 420 m³/h (60 Hz), the ultimate pressure 0.05 mbar. Nominal motor rating 7.5 kW (50 Hz) or 9.5 kW (60 Hz).

Features

• Powerful: screw design with patented self-balancing screws, for chemical processes, distillation and vacuum drying
• Efficient: low operating costs, little maintenance, long maintenance intervals, high availability, water cooling
• Flexible: air cooling, various seal and coating variants and ATEX-certified versions

Typical applications

Busch lists: Automotive and transport (vacuum cleaning / parts to be cleaned, heat treatment, vacuum die casting and others); Batteries (degassing, mixing, impregnation and others); Biogas handling (upgrading by pressure swing adsorption); Carbon capture (amine scrubbing, pressure swing adsorption, moving bed method and others); Chemistry (packaging, filtration, degassing, distillation, solvent recovery and others); Food processing (vacuum cooling, freeze drying, pasteurisation and sterilisation); Metallurgy (heat treatment, steel degassing, vacuum brazing and others); Oil and gas (glycol regeneration); Packaging (rotary table/carousel packaging machines, central vacuum systems, thermoforming packaging machines – sealing/evacuation station and others); Pharmaceuticals and biotechnology (freeze drying, lyophilisation, distillation, solvent recovery, filtration, degassing and others); Plastics processing (extruder and melt degassing, drying, degassing, dissolution); Power generation (green power generation, transformer drying, transformer oil purification); R&D (freeze drying, lyophilisation); Refrigeration and air conditioning (vacuum die casting); Solar (laminating); Industrial gases (liquefaction, gas transport, insulation vacuum).

Accessories and versions

• Various seal and coating configurations
• ATEX-certified versions available
• ATEX – for safe operation in potentially explosive atmospheres

Advice and service

Ehrler & Beck advises on selection, accessories and service.

Pumping speed 50Hz	350
Pumping speed 60Hz	420
Ultimate pressure	0.05
Rated motor power 50Hz	7.5
Rated motor power 60Hz	9.5
Weight	500

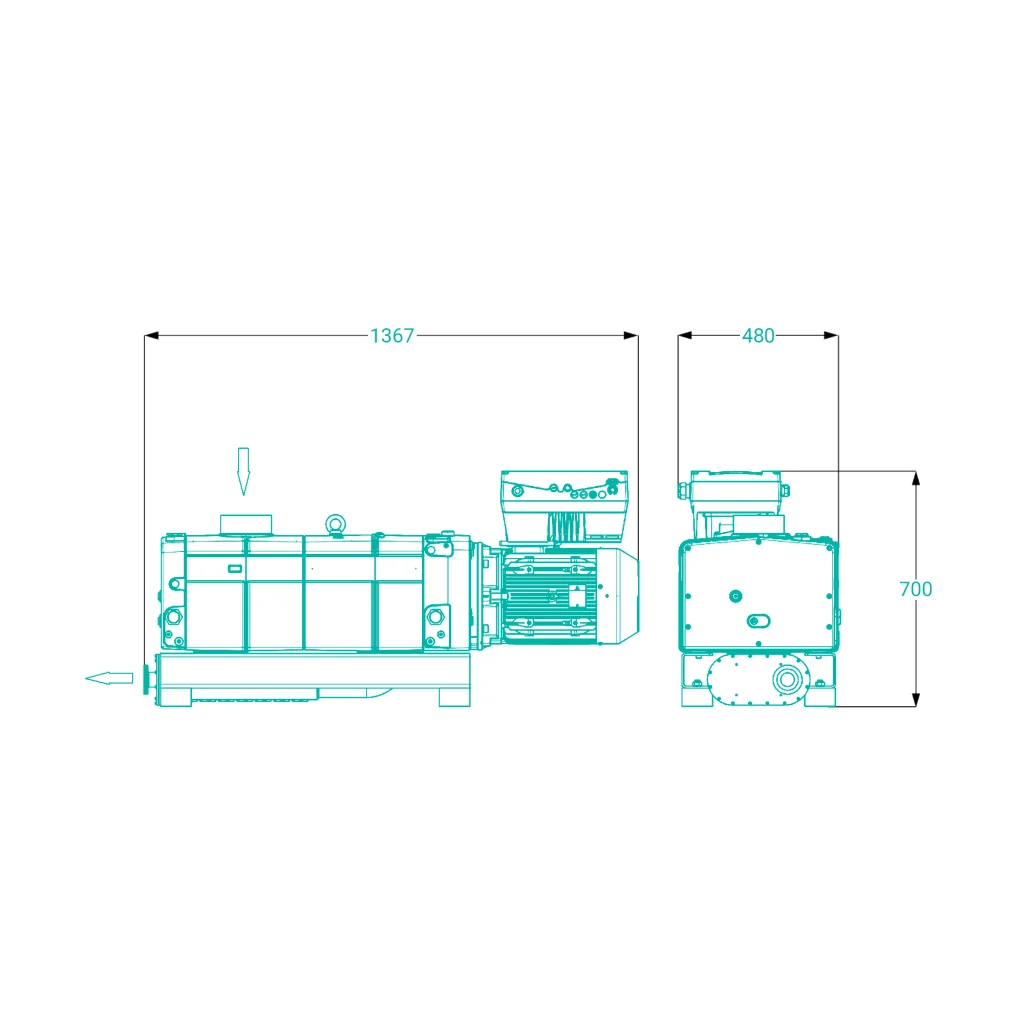

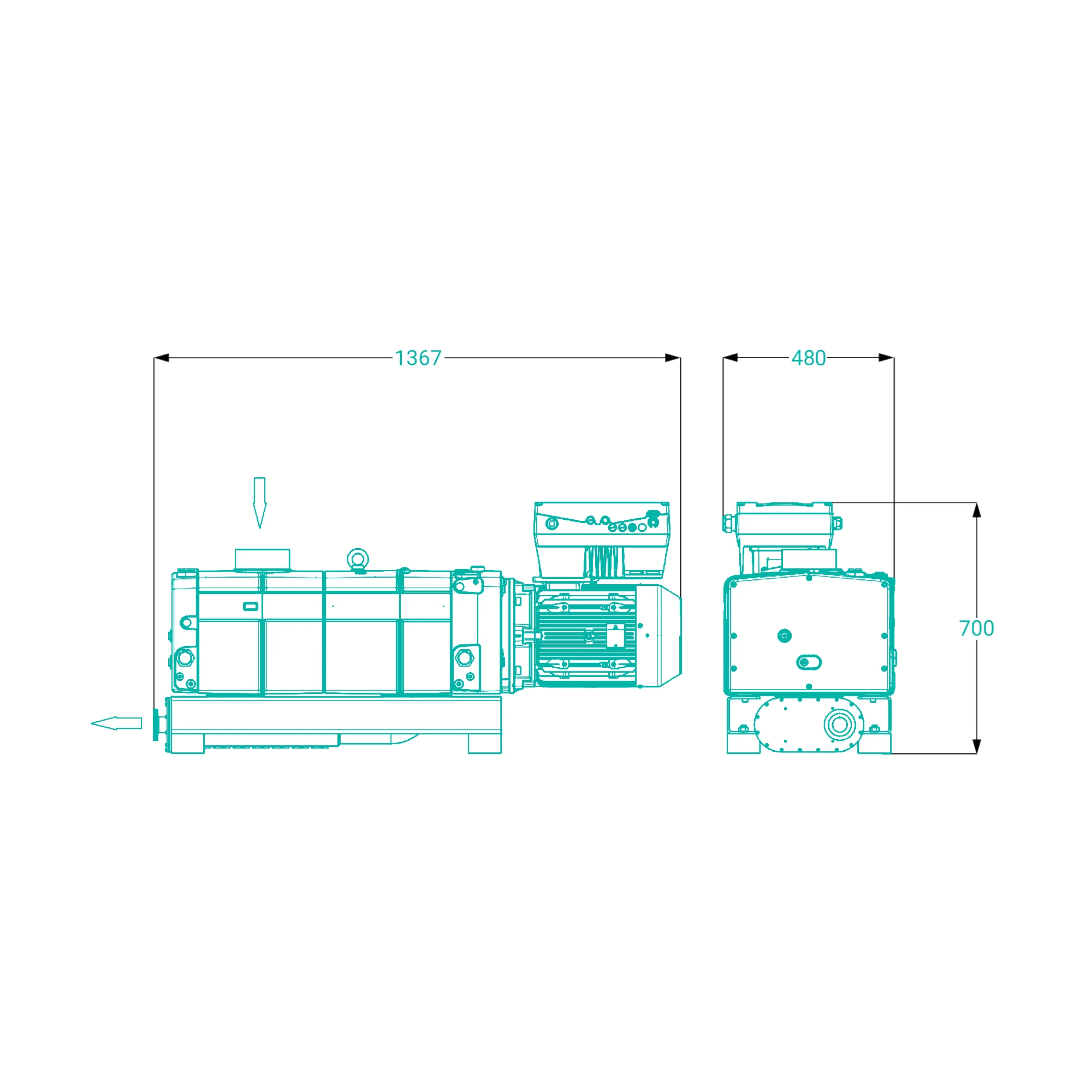

Length	136.7
Width	48
Height	70
Inlet connection flange	DN 80 PN 6
Outlet connection flange	DN 63 ISO–K
Noise level	66 dB(A)
Cooling method	Water cooling
Oil type	Oil-free

Additional technical data
