Manufacturer

Atlas Copco vacuum pumps

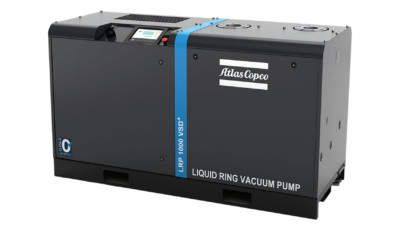

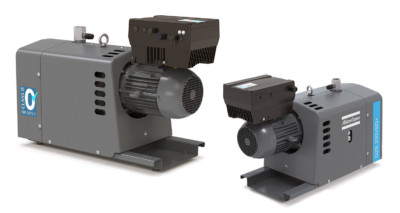

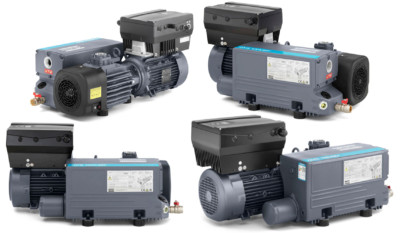

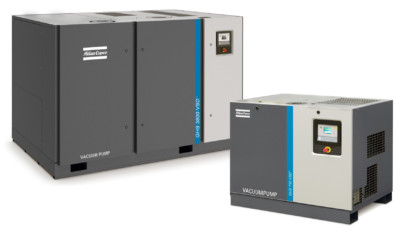

The current Atlas Copco range at Ehrler & Beck: 242 models in 28 series – from the oil-lubricated GVS rotary vane pump, the oil-injected GHS VSD+ screw pump and the DZS claw pump to the LRP VSD+ liquid ring pump.

Compare 242 modelsAbout Atlas Copco

  • 242models
  • 28series
  • 9technologies
  • 1873founded in Stockholm

Technologies and series

9 technologies, 28 series

Pumping speeds from 0.75 to 36,600 m³/h (at 50 Hz). Each series leads to its page with all models; “Show only these models” sets the filter of the product overview.

Outdated Atlas Copco modelsOlder models that Atlas Copco no longer carries in its current range – brought together on one overview page.View the overview

Product overview

Compare all 242 Atlas Copco models

On the left you can filter by technology, series, cooling, ultimate pressure, pumping speed and rated motor power – for 50 or 60 Hz.

AWC A series 8 models

AWC 25 APumping speed 25 m³/h 50 Hz31 m³/h 60 HzUltimate pressure 30 mbarRated motor power 0.9 kW 50 Hz1.1 kW 60 HzVariants
AWC 45 APumping speed 45 m³/h 50 Hz58 m³/h 60 HzUltimate pressure 30 mbarRated motor power 1.9 kW 50 Hz2.2 kW 60 HzVariants
AWC 80 APumping speed 80 m³/h 50 Hz99 m³/h 60 HzUltimate pressure 30 mbarRated motor power 3 kW 50 Hz3.7 kW 60 HzVariants
AWC 110 APumping speed 110 m³/h 50 Hz136 m³/h 60 HzUltimate pressure 30 mbarRated motor power 3 kW 50 Hz3.7 kW 60 HzVariants
AWC 140 APumping speed 134 m³/h 50 Hz165 m³/h 60 HzUltimate pressure 30 mbarRated motor power 3.7 kW 50 Hz5.6 kW 60 HzVariants
AWC 190 APumping speed 190 m³/h 50 Hz234 m³/h 60 HzUltimate pressure 30 mbarRated motor power 5.6 kW 50 Hz7.5 kW 60 HzVariants
AWC 280 APumping speed 279 m³/h 50 Hz342 m³/h 60 HzUltimate pressure 30 mbarRated motor power 7.5 kW 50 Hz11 kW 60 HzVariants
AWC 350 APumping speed 350 m³/h 50 Hz432 m³/h 60 HzUltimate pressure 30 mbarRated motor power 11 kW 50 Hz15 kW 60 HzVariants

AWC series 9 models

AWC 30Pumping speed 27 m³/h 50 Hz32 m³/h 60 HzUltimate pressure 33 mbarRated motor power 1.1 kW 50 Hz1.5 kW 60 HzVariants 6
AWC 50Pumping speed 52 m³/h 50 Hz62 m³/h 60 HzUltimate pressure 33 mbarRated motor power 1.5 kW 50 Hz2.4 kW 60 HzVariants 6
AWC 80Pumping speed 80 m³/h 50 Hz96 m³/h 60 HzUltimate pressure 33 mbarRated motor power 3 kW 50 Hz4 kW 60 HzVariants 6
AWC 110Pumping speed 110 m³/h 50 Hz130 m³/h 60 HzUltimate pressure 33 mbarRated motor power 3.85 – 4 kW 50 Hz6.3 kW 60 HzVariants 9
AWC 160Pumping speed 165 m³/h 50 Hz185 m³/h 60 HzUltimate pressure 33 mbarRated motor power 4 kW 50 Hz5.5 – 6.3 kW 60 HzVariants 15
AWC 220Pumping speed 230 m³/h 50 Hz265 m³/h 60 HzUltimate pressure 33 mbarRated motor power 5.5 kW 50 Hz7.5 – 8.2 kW 60 HzVariants 15
AWC 290Pumping speed 280 m³/h 50 Hz310 m³/h 60 HzUltimate pressure 33 mbarRated motor power 7.5 kW 50 Hz11 – 12.6 kW 60 HzVariants 15
AWC 390Pumping speed 400 m³/h 50 Hz420 m³/h 60 HzUltimate pressure 33 mbarRated motor power 11 kW 50 Hz15 – 16.5 kW 60 HzVariants 15
AWC 500Pumping speed 500 m³/h 50 Hz535 m³/h 60 HzUltimate pressure 33 mbarRated motor power 15 kW 50 Hz18.5 kW 60 HzVariants 15

AWD A series 8 models

AWD 100 APumping speed 89 m³/h 50 Hz110 m³/h 60 HzUltimate pressure 30 mbarRated motor power 3 kW 50 Hz4 kW 60 HzVariants 2
AWD 140 APumping speed 142 m³/h 50 Hz177 m³/h 60 HzUltimate pressure 30 mbarRated motor power 5 kW 50 Hz6 kW 60 HzVariants 2
AWD 170 APumping speed 176 m³/h 50 Hz219 m³/h 60 HzUltimate pressure 30 mbarRated motor power 6 kW 50 Hz8 kW 60 HzVariants 2
AWD 240 APumping speed 229 m³/h 50 Hz285 m³/h 60 HzUltimate pressure 30 mbarRated motor power 8 kW 50 Hz11 kW 60 HzVariants 2
AWD 350 APumping speed 328 m³/h 50 Hz408 m³/h 60 HzUltimate pressure 30 mbarRated motor power 11 kW 50 Hz15 kW 60 HzVariants 2
AWD 375 APumping speed 354 m³/h 50 Hz440 m³/h 60 HzUltimate pressure 30 mbarRated motor power 13 kW 50 Hz19 kW 60 HzVariants 2
AWD 600 APumping speed 555 m³/h 50 Hz690 m³/h 60 HzUltimate pressure 30 mbarRated motor power 23 kW 50 Hz30 kW 60 HzVariants 2

AWD series 14 models

AWL series 11 models

AWS series 22 models

DBD series 6 models

DBDt series 17 models

DBS series 29 models

DBSt series 12 models

DHS VSD+ series 1 model

DRB series 4 models

DRB VSD+ series 2 models

DVS series 10 models

DWS C series 7 models

DWS series 3 models

DWS VSD+ series 6 models

DZM VSD+ series 2 models

DZQ series 1 model

DZS series 8 models

DZS VSD+ series 5 models

GHS VSD+ series 21 models

GLS series 2 models

GVD series 13 models

GVS series 9 models

GVS VSD+ series 4 models

LRP VSD+ series 3 models

ZRS series 5 models

Model comparison

About Atlas Copco

Atlas Copco – an industrial group since 1873

Atlas Copco was established in Stockholm in 1873 and is still headquartered there. According to the company, the Swedish industrial group has built vacuum pumps since the 1960s; since 2017, vacuum technology has been a business area of its own.

From Atlas Copco, Ehrler & Beck carries liquid ring, screw, claw and Roots pumps, oil-lubricated and dry-running rotary vane pumps, and side channel blowers. All current models are listed in the product overview – with filters for pumping speed, ultimate pressure and rated motor power.

  • 1873Founded in Stockholm
  • 9Pump technologies in the range
  • 28Series at Ehrler & Beck
  • 242current models

History

The first vacuum pumps grew out of the group's compressor business. The British manufacturer Edwards joined in 2014 and the Cologne-based company Leybold in 2016; in 2017 this became the Vacuum Technique business area. Ehrler & Beck carries both brands as well.

Learn more about Atlas Copco

Applications today

As fields of application for its vacuum technology, Atlas Copco names, among others, vacuum packaging of meat, canning, woodworking, plastics extrusion, clay degassing, waste water treatment and semiconductor manufacturing.

Spare parts and service

In addition to the pumps, Ehrler & Beck supplies original spare parts and accessories for Atlas Copco vacuum pumps and offers maintenance and repair.

Frequently asked questions

Questions about Atlas Copco vacuum pumps

Which Atlas Copco series does Ehrler & Beck carry?

Currently 28 series: AWC, AWC A, AWD, AWD A, AWL, AWS, DBD, DBDt, DBS, DBSt, DHS VSD+, DRB, DRB VSD+, DVS, DWS, DWS C, DWS VSD+, DZM VSD+, DZQ, DZS, DZS VSD+, GHS VSD+, GLS, GVD, GVS, GVS VSD+, LRP VSD+ and ZRS. Each series has its own page with all its models.

How do I find the right Atlas Copco vacuum pump?

In the product overview, all models can be filtered by pumping speed, ultimate pressure, rated motor power, technology, series and cooling. For sizing, it is best to tell us the gas to be pumped, the working pressure and the pumping speed you need – we will be glad to advise you.

What do the figures for 50 Hz and 60 Hz mean?

The pumping speed and the rated motor power of a pump depend on the mains frequency. The overview therefore shows both values wherever the manufacturer states them, and the size filters can be switched between 50 Hz and 60 Hz.

Does Ehrler & Beck supply spare parts and accessories for Atlas Copco pumps?

Yes. In addition to the vacuum pumps, Ehrler & Beck offers original spare parts and accessories from Atlas Copco. The spare parts and accessories of a model are also listed on its product page, as far as they are recorded there.

Where can I find older Atlas Copco models?

Models that Atlas Copco no longer carries in its current range are listed under outdated Atlas Copco models – with their order numbers and, where there is one, a current alternative from our range.

Which Atlas Copco pump fits your process?

Are you looking for a Atlas Copco vacuum pump, a spare part or support with maintenance and repair? Get in touch with us.
