COBRA DX 0950 A PLUS

Name: COBRA DX 0950 A PLUS
Brand: Busch

Series: COBRA Industry series Manufacturer: Busch Technology: Screw vacuum pumps Industries: Automotive and transport, Battery manufacturing Applications: 3D printing and additive manufacturing, Backing pump for high vacuum and accelerators

The Busch COBRA DX 0950 A PLUS is a dry screw vacuum pump with a nominal pumping speed of 950 m³/h and an ultimate pressure of 0.01 mbar. Ehrler & Beck advises on selection and service.

Request a quote for this product Read more

Pumping speed 950 m³/h 50 Hz 950 m³/h 60 Hz
Ultimate pressure 0.01 mbar
Rated motor power 18.5 kW 50 Hz 18.5 kW 60 Hz

Busch COBRA DX 0950 A PLUS – dry screw vacuum pump

The Busch COBRA DX 0950 A PLUS is a dry screw vacuum pump. The nominal pumping speed is 950 m³/h, the ultimate pressure 0.01 mbar. Nominal motor rating 18.5 kW.

Features

Plug & Pump: simple handling, touchscreen control panel; for many industries, including the solar industry, lithium batteries, drying, food packaging, coating, vacuum furnaces and central vacuum supply
Cost reduction: lower energy consumption and low operating costs through frequency converter
Proven technology: reliable operation with dry screw technology, little maintenance, small footprint

Typical applications

Busch lists: Batteries (degassing, mixing, impregnation and others); Carbon capture (direct air capture); Confectionery (mixing, preparation and cooking).

Accessories and versions

Air-cooled version available

Advice and service

Ehrler & Beck advises on selection, accessories and service.

Pumping speed 50Hz	950
Pumping speed 60Hz	950
Ultimate pressure	0.01
Rated motor power 50Hz	18.5
Rated motor power 60Hz	18.5
Weight	1,125
Length	170
Width	70
Height	100
Inlet connection flange	DN 100 ISO
Outlet connection flange	DN 100 ISO
Noise level	75 dB(A)
Oil type	Oil-free

Additional technical data

Technical data	Value
Nominal pumping speed	max. 950 m³/h
Ultimate pressure	≤ 0.01 mbar
Rated motor power	18.5 kW
Nominal speed	4320 min⁻¹
Sound pressure level (ISO 2151, KpA = 3 dB)	≤ 75 dB(A)

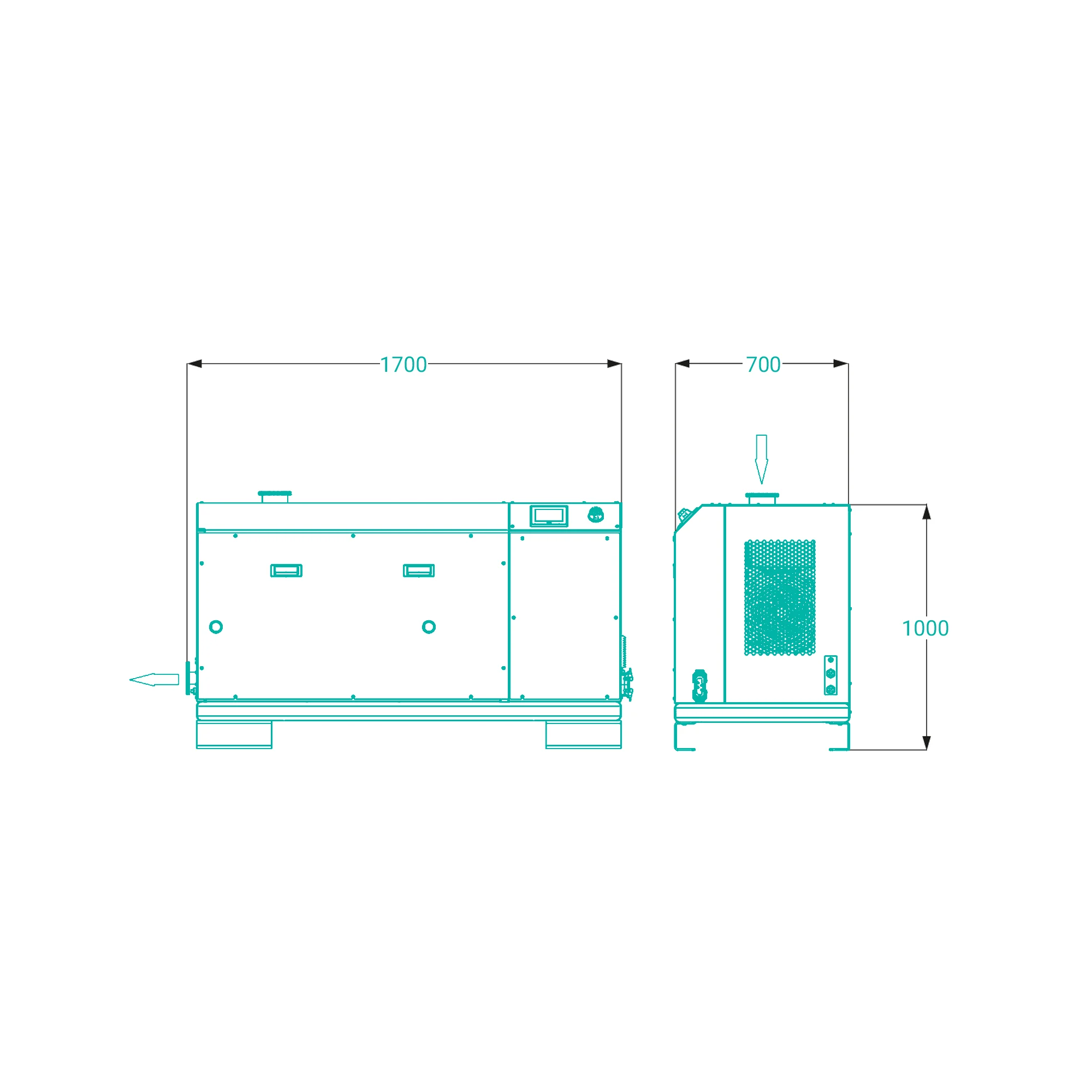

Dimensions (L × W × H)	1700 × 700 × 1000 mm
Weight (approx.)	1125 kg
Gas inlet	DN 100 ISO
Gas outlet	DN 100 ISO

Product name	Part number
Busch oil VSC 100 (ISO VG 100, synthetic), 1 l pack	0831 168 356
Busch oil VSC 100 (ISO VG 100, synthetic), 5 l pack	0831 168 357
Busch oil VSC 100 (ISO VG 100, synthetic), 10 l pack	0831 210 162
Busch oil VSC 100 (ISO VG 100, synthetic), 20 l pack	0831 168 359
Cooling liquid Zitrec M-25, 5 l pack – per the ACV manual (air-cooled)	0831 563 469
Cooling liquid Zitrec M-25, 20 l pack – per the ACV manual (air-cooled)	0831 238 761
