MINK MV 0060 E ECOTORQUE

Name: MINK MV 0060 E ECOTORQUE
Brand: Busch

Series: MINK series Manufacturer: Busch Technology: Claw vacuum pumps

The Busch MINK MV 0060 E ECOTORQUE is a dry claw vacuum pump with a nominal pumping speed of 60 m³/h and an ultimate pressure of 40 mbar. Ehrler & Beck advises on selection and service.

Request a quote for this product Read more

Pumping speed 60 m³/h 50 Hz 60 m³/h 60 Hz
Ultimate pressure 40 mbar

Busch MINK MV 0060 E ECOTORQUE – dry claw vacuum pump

The Busch MINK MV 0060 E ECOTORQUE is a dry claw vacuum pump. The nominal pumping speed is 60 m³/h, the ultimate pressure 40 mbar.

Features

Quiet: small footprint, low noise level and considerably less pulsation, also suitable for workplaces
Efficient: latest claw technology, frequency converter (ECOTORQUE) with PID controller, low energy consumption
Easy to use: plug-and-play control, tool-free connection via M12 Modbus socket (A-coded) for the Busch Vacuum Manager software (set-up, diagnostics, updates)

Advice and service

Ehrler & Beck advises on selection, accessories and service.

Pumping speed 50Hz	60
Pumping speed 60Hz	60
Ultimate pressure	40
Weight	85
Length	61
Width	34.5
Height	37
Inlet connection flange	G 1¼"
Outlet connection flange	G ¾"
Noise level	66 dB(A)
Oil type	Oil-free

Additional technical data

Technical data	Value
Nominal pumping speed	60 m³/h
Ultimate pressure	40 mbar
Nominal speed	1200 – 4200 min⁻¹
Power consumption (motor and fan)	1.4 kW
Sound pressure level (ISO 3744, 1 m, medium load)	66 dB(A)
Oil quantity	0.6 l

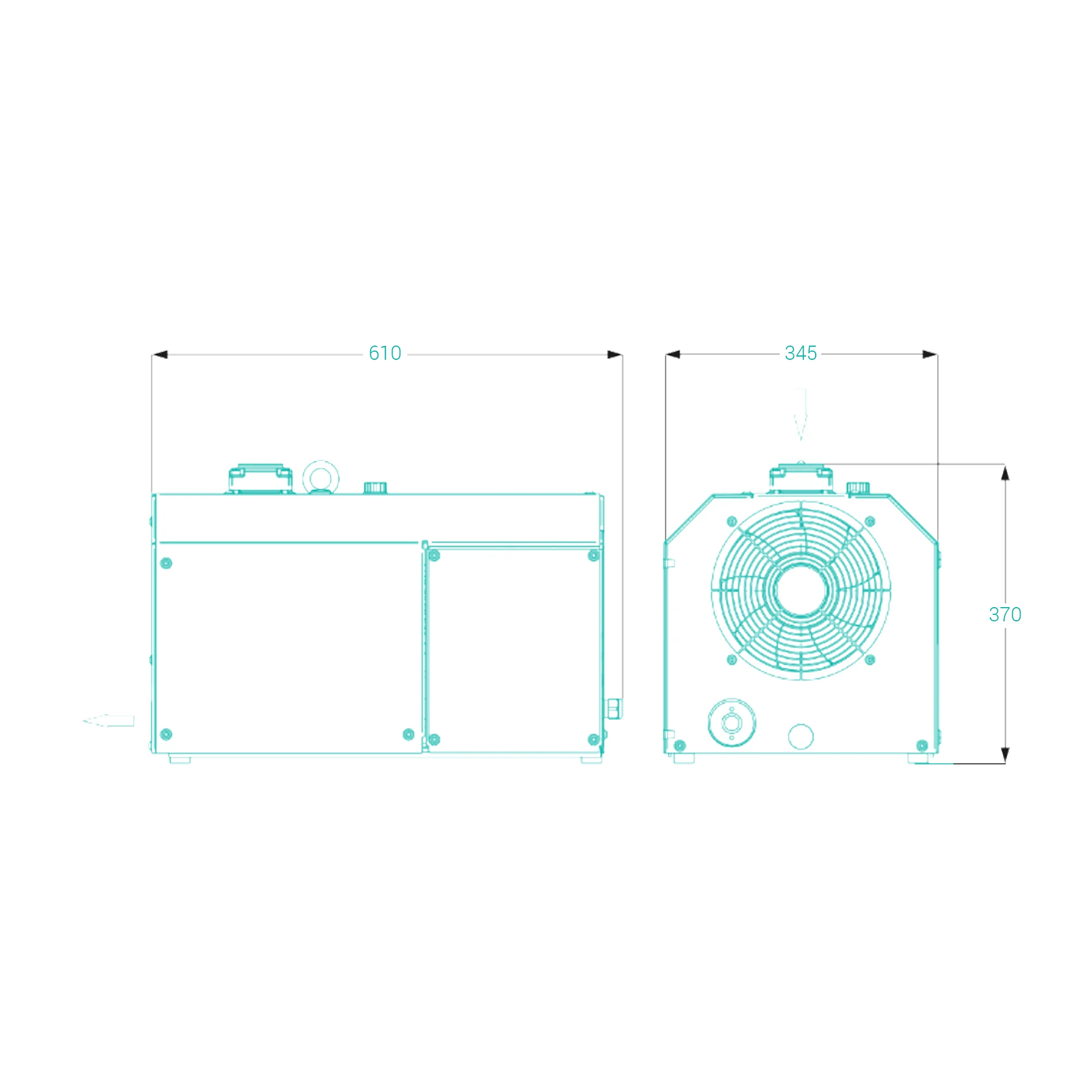

Dimensions (L × W × H)	610 × 345 × 370 mm
Weight (approx.)	85 kg
Gas inlet	G 1¼"
Gas outlet	G ¾"

Product name	Part number
Communication cable M12-USB (Busch Vacuum Manager)	0987 208 730
Inlet filter (paper or polyester cartridge)	on request
Condensate drain	on request
Remote control package RCP (start/stop signal, M12 connector)	on request
OTTO IoT Box	on request
