MINK MM 1104 CVM

Busch MINK MM 1104 CVM – dry claw vacuum pump

The Busch MINK MM 1104 CVM is a dry claw vacuum pump. The nominal pumping speed is 62 m³/h, the ultimate pressure 400 mbar. Nominal motor rating 1.3 kW.

Features

• Reliable: according to Busch more than 50,000 MINK pumps in milking robots and milking systems, dry claw technology without operating fluids, virtually maintenance-free
• Efficient: according to Busch up to 25 % energy savings compared with conventional vacuum generators on milking robots and milking systems
• Flexible: wide frequency range from 10 to 60 Hz

Typical applications

Busch lists: Automotive and transport (vacuum sewerage); Biogas handling (upgrading by membrane); Chemistry (packaging, filtration, degassing, distillation, solvent recovery and others); Confectionery (vacuum extrusion); Fish farming (pneumatic suction conveying of ice for cooling, extraction of slaughterhouse waste, holding vacuum for filleting and others); Pharmaceuticals and biotechnology (distillation, solvent recovery, filtration, degassing, evaporation, drying and others); Waste water treatment (vacuum sewerage); Woodworking (handling devices and robots).

Accessories and versions

• 1104 CVM with stainless steel silencer
• 1102 CVM with grey cast iron silencer

Advice and service

Ehrler & Beck advises on selection, accessories and service.

Pumping speed 50Hz	62
Ultimate pressure	400
Rated motor power 50Hz	1.3
Weight	78

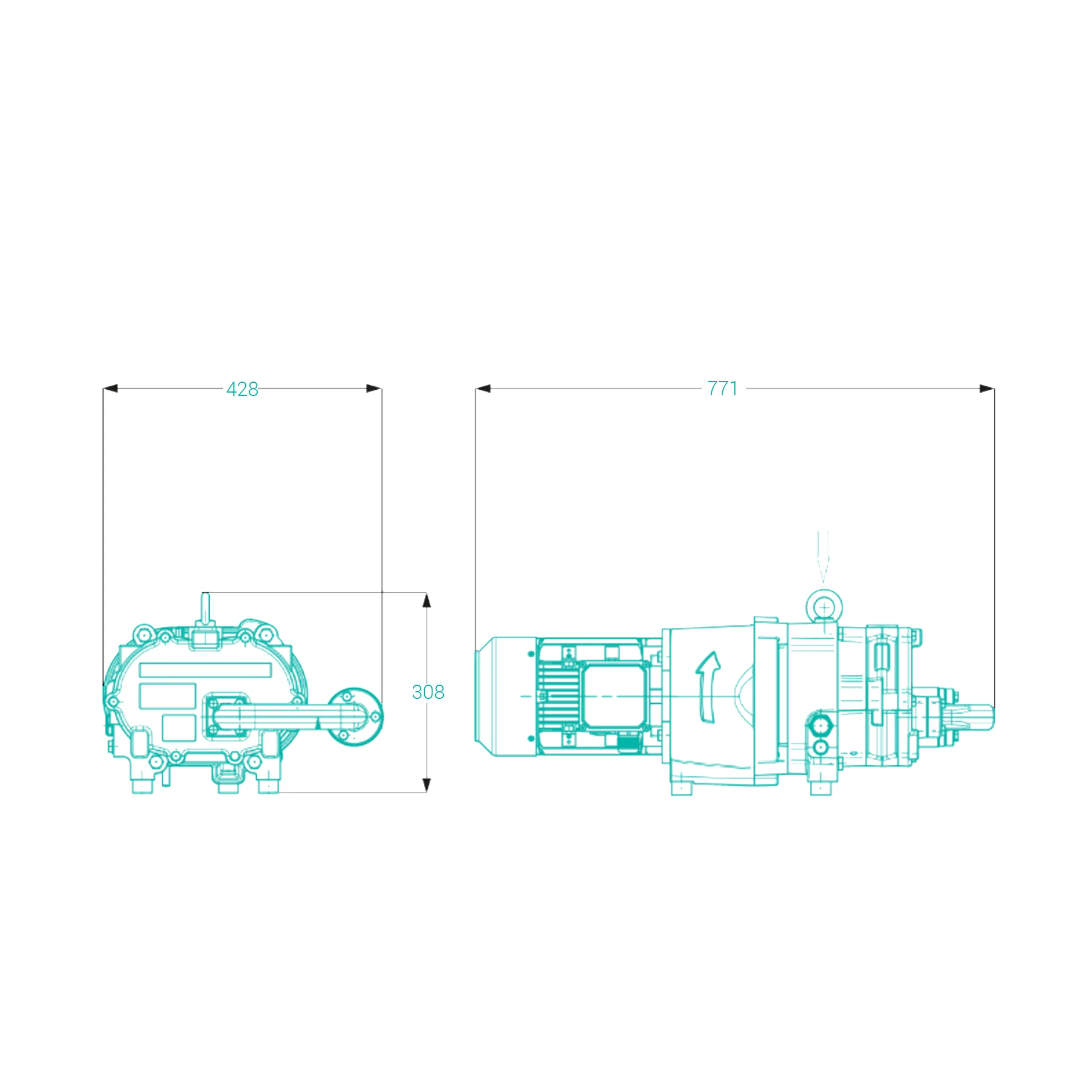

Length	77.1
Width	42.8
Height	30.6
Noise level	72 dB(A)
Oil type	Oil-free

Convert units: vacuum and pressure units · Nm³/h to m³/h

Additional technical data
