Claw vacuum pumps

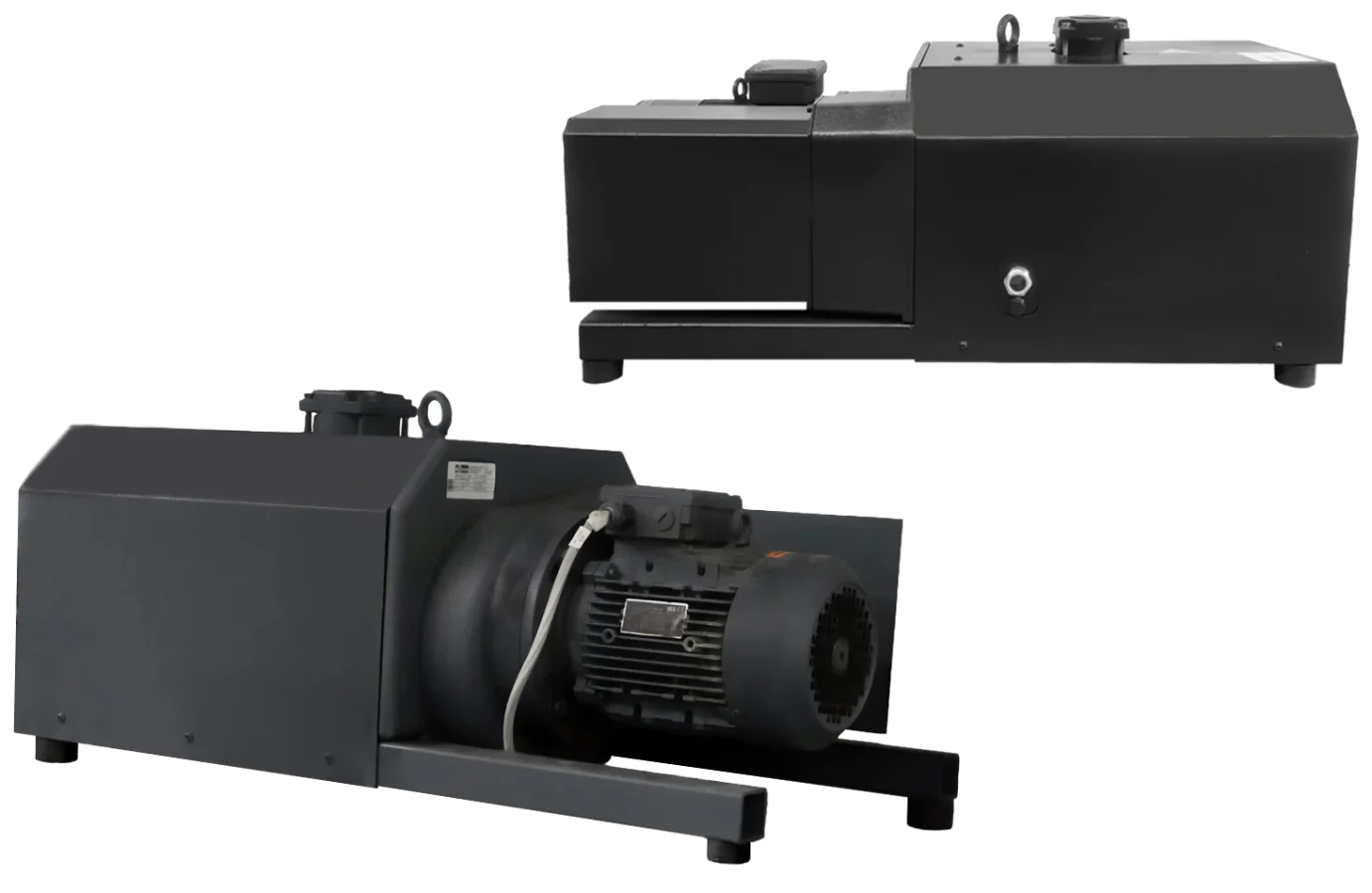

Busch MINK MM / MI / ME series

The Busch MINK claw vacuum pumps were developed for industrial applications that require constant vacuum, high pumping speed and completely oil-free compression. The pumps are available in single-stage or two-stage versions and provide different vacuum levels depending on the model.

View 32 modelsSend an enquiry

  • 32Models
  • 18–1,150m³/h pumping speed at 50 Hz
  • 0.8mbar lowest ultimate pressure
  • 0.5–25kW rated motor power at 50 Hz
Busch MINK MM / MI / ME series

Product overview

Products of the Busch MINK MM / MI / ME series

Use the filters on the left to narrow the models down by their key figures. Each row leads to the model with its technical data and variants.

MINK MB 0018 APumping speed 18 m³/h 50 Hz18 m³/h 60 HzUltimate pressure 600 mbarRated motor power 0.5 kW 50 Hz0.5 kW 60 HzVariants 2
MINK MV 0040 E ECOTORQUEPumping speed 40 m³/h 50 Hz40 m³/h 60 HzUltimate pressure 40 mbarRated motor power Variants
MINK MI 2124 BVPumping speed 50 m³/h 50 Hz60 m³/h 60 HzUltimate pressure 20 mbarRated motor power 2 kW 50 Hz2.4 kW 60 HzVariants
MINK MV 0060 E ECOTORQUEPumping speed 60 m³/h 50 Hz60 m³/h 60 HzUltimate pressure 40 mbarRated motor power Variants
MINK MM 0084 APumping speed 62 m³/h 50 Hz75 m³/h 60 HzUltimate pressure 60 mbarRated motor power 1.5 kW 50 Hz1.7 kW 60 HzVariants
MINK MM 1104 BVPumping speed 62 m³/h 50 Hz75 m³/h 60 HzUltimate pressure 60 mbarRated motor power 1.5 kW 50 Hz1.7 kW 60 HzVariants 10
MINK MM 1104 CVMPumping speed 62 m³/h 50 HzUltimate pressure 400 mbarRated motor power 1.3 kW 50 HzVariants
MINK MM 0104 APumping speed 80 m³/h 50 Hz95 m³/h 60 HzUltimate pressure 60 mbarRated motor power 2.2 kW 50 Hz2.4 kW 60 HzVariants
MINK MM 1144 BVPumping speed 80 m³/h 50 Hz95 m³/h 60 HzUltimate pressure 60 mbarRated motor power 2.2 kW 50 Hz2.4 kW 60 HzVariants 9
MINK MV 0080 E ECOTORQUEPumping speed 80 m³/h 50 Hz80 m³/h 60 HzUltimate pressure 40 mbarRated motor power Variants
MINK MM 0142 APumping speed 110 m³/h 50 Hz135 m³/h 60 HzUltimate pressure 40 mbarRated motor power 3 kW 50 Hz3.4 kW 60 HzVariants
MINK MM 1102 BVPumping speed 110 m³/h 50 Hz135 m³/h 60 HzUltimate pressure 60 mbarRated motor power 3 kW 50 Hz3.4 kW 60 HzVariants 6
MINK MM 1102 CVMPumping speed 110 m³/h 50 HzUltimate pressure 400 mbarRated motor power 2.2 kW 50 HzVariants
MINK MI 2122 BVPumping speed 120 m³/h 50 Hz145 m³/h 60 HzUltimate pressure 20 mbarRated motor power 5.1 kW 50 Hz6.8 kW 60 HzVariants
MINK MM 0182 APumping speed 140 m³/h 50 Hz175 m³/h 60 HzUltimate pressure 40 mbarRated motor power 3.5 kW 50 Hz4.8 kW 60 HzVariants
MINK MM 1142 BVPumping speed 140 m³/h 50 Hz175 m³/h 60 HzUltimate pressure 60 mbarRated motor power 3.5 kW 50 Hz4.8 kW 60 HzVariants 13
MINK MM 1324 AVPumping speed 160 m³/h 50 Hz190 m³/h 60 HzUltimate pressure 60 mbarRated motor power 4 kW 50 Hz4.2 kW 60 HzVariants 2
MINK MM 1202 AVPumping speed 200 m³/h 50 Hz240 m³/h 60 HzUltimate pressure 100 mbarRated motor power 4.3 kW 50 Hz5.2 kW 60 HzVariants 11
MINK MM 1252 AVPumping speed 245 m³/h 50 Hz290 m³/h 60 HzUltimate pressure 100 mbarRated motor power 5.5 kW 50 Hz6.5 kW 60 HzVariants 8
MINK MW 0332 BPumping speed 280 m³/h 50 Hz330 m³/h 60 HzUltimate pressure 0.8 mbarRated motor power 7.5 kW 50 Hz9.5 kW 60 HzVariants
MINK MV 0312 BPumping speed 290 m³/h 50 Hz345 m³/h 60 HzUltimate pressure 150 mbarRated motor power 5.5 kW 50 Hz6.5 kW 60 HzVariants 4
MINK MM 1322 AVPumping speed 300 m³/h 50 Hz360 m³/h 60 HzUltimate pressure 150 mbarRated motor power 6 kW 50 Hz8 kW 60 HzVariants 10
MINK MV 0310 BPumping speed 345 m³/h 50 Hz345 m³/h 60 HzUltimate pressure 150 mbarRated motor power 6 kW 50 Hz6 kW 60 HzVariants
MINK MV 0360 A ECOTORQUEPumping speed 360 m³/h 50 Hz360 m³/h 60 HzUltimate pressure 100 mbarRated motor power 7.5 kW 50 Hz7.5 kW 60 HzVariants
MINK MM 1402 AVPumping speed 400 m³/h 50 Hz470 m³/h 60 HzUltimate pressure 200 mbarRated motor power 7.5 kW 50 Hz9.5 kW 60 HzVariants 3
MINK MV 0502 BPumping speed 400 m³/h 50 Hz470 m³/h 60 HzUltimate pressure 200 mbarRated motor power 7.5 kW 50 Hz9.5 kW 60 HzVariants 2
MINK MV 0500 BPumping speed 470 m³/h 50 Hz470 m³/h 60 HzUltimate pressure 200 mbarRated motor power 11 kW 50 Hz11 kW 60 HzVariants
MINK MM 1502 AVPumping speed 500 m³/h 50 Hz600 m³/h 60 HzUltimate pressure 200 mbarRated motor power 11 kW 50 Hz12.6 kW 60 HzVariants 5
MINK MV 0602 BPumping speed 500 m³/h 50 Hz600 m³/h 60 HzUltimate pressure 200 mbarRated motor power 11 kW 50 Hz12.6 kW 60 HzVariants 3
MINK MV 0600 BPumping speed 600 m³/h 50 Hz600 m³/h 60 HzUltimate pressure 200 mbarRated motor power 15 kW 50 Hz15 kW 60 HzVariants
MINK MV 1202 BPumping speed 950 m³/h 50 Hz1,150 m³/h 60 HzUltimate pressure 200 mbarRated motor power 18.5 kW 50 Hz22 kW 60 HzVariants 3
MINK MV 1200 B ECOTORQUEPumping speed 1,150 m³/h 50 Hz1,150 m³/h 60 HzUltimate pressure 200 mbarRated motor power 25 kW 50 Hz25 kW 60 HzVariants

Model comparison

About the series

Features and benefits of the MINK MM / MI / ME series

The series at a glance

Two contact-free rotors generate the vacuum in a dry and oil-free pumping chamber. As the wearing parts are located outside the pumping chamber, the pumps offer a long service life and low maintenance costs.

The MINK series offers low noise emissions, air cooling, modular design and practically wear-free operation. It is particularly suitable for applications involving dust or varying vacuum demand, such as woodworking, pneumatic conveying, printing and soil remediation.

With the MINK MM, MI and ME series, Busch offers a powerful range of dry-running claw vacuum pumps that was developed for clean operation, high efficiency and reliable performance. The contact-free claw principle allows oil-free vacuum generation and ensures low maintenance requirements. Thanks to the robust construction and the efficient technology, the MINK series offers a durable and economical solution for numerous industrial vacuum applications.

Dry and oil-free

The Busch MINK MM, MI and ME series works completely dry and oil-free. As a result, the pumped medium remains free of oil contamination, which allows clean and reliable vacuum operation.

Contact-free claw principle

The counter-rotating claws work without contact and with little wear. This reduces maintenance requirements and operating costs and at the same time supports a long service life.

High efficiency and versatile use

The MINK series offers efficient vacuum generation with low energy and maintenance requirements. Depending on the model and version, it is suitable for numerous industrial applications, in particular packaging, materials handling, pneumatic conveying, vacuum lifting and general industrial vacuum processes.

Operating principle

The Busch MINK MM, MI and ME series works on the principle of dry-running claw vacuum technology. Two counter-rotating claws move without contact inside the pump housing and create continuously changing working chambers. The rotary movement of the claws compresses the air drawn in, which is then discharged through the outlet.

As the MINK series runs dry and oil-free, the pumped medium does not come into contact with oil or lubricants in the compression chamber. This allows clean and contamination-free vacuum generation, which makes the pumps particularly suitable for demanding industrial processes.

The contact-free claw principle ensures low wear and reduced maintenance. The robust construction allows reliable continuous operation and a long service life combined with efficient vacuum generation.

The MINK MM, MI and ME series is suitable for numerous industrial applications that call for dry, oil-free vacuum, high operational reliability and low-maintenance operation.

The technology page shows the operating principle with an interactive drawing: Claw vacuum pumps.

Standard operating conditions and performance

  • Designed for dry, oil-free vacuum applications

Frequently asked questions

Questions about the Busch MINK MM / MI / ME series

Which models does the Busch MINK MM / MI / ME series comprise?
The Ehrler & Beck catalogue lists 32 models of the series. The product overview names each model with its key figures and the number of its variants; the model page shows the technical data.
Which pumping speeds does the series cover?
At 50 Hz the models cover pumping speeds from 18 to 1,150 m³/h. The figure comes from the product data of the individual models; values for 60 Hz, where available, are given in the product overview.
What ultimate pressure do the models of the series reach?
Depending on the model, the ultimate pressure lies between 0.8 and 600 mbar. The figures on the page of the respective model are decisive.
How does the technology of the series work?
The series belongs to the field of claw vacuum pumps. The technology page explains the operating principle with an interactive drawing and names all series of this technology.
Does Ehrler & Beck supply spare parts and service for the Busch MINK MM / MI / ME series?
Yes. Ehrler & Beck supplies the models of the series as well as spare parts and accessories and takes care of maintenance and repair. For a quotation, an enquiry with the model or part number is all it takes.

Which model fits your process?

Tell us the gas to be conveyed, the working pressure and the flow rate you need – we will advise you on selection, spare parts and service.
