MINK MM 1202 AV Version as listed in the Busch shop, motor and equipment on request

Busch MINK MM 1202 AV – dry claw vacuum pump

The Busch MINK MM 1202 AV is a dry claw vacuum pump. The nominal pumping speed is 200 m³/h (50 Hz) or 240 m³/h (60 Hz), the ultimate pressure 100 mbar. Nominal motor rating 4.3 kW (50 Hz) or 5.2 kW (60 Hz).

Features

• Efficient: according to Busch considerable energy savings compared with conventional vacuum generators
• Virtually maintenance-free: dry, contact-free operation
• Robust: proven design, according to Busch more than 200,000 pumps in use

Typical applications

Busch lists: Automotive and transport (pick and place, vacuum sewerage); Batteries (mixing, pick and place, electrolyte filling); Biogas handling (upgrading by membrane); Carbon capture (membrane separation, direct air capture); Chemistry (packaging, filtration, degassing, pneumatic conveying and others); Confectionery (pneumatic conveying, moulding and forming, vacuum extrusion); Dairy products (cheese production – vacuum chambers for cheese, cheese production – pneumatic conveying, cheese production – cheese towers and others); Fish farming (transport vacuum, vacuum packaging, pneumatic suction conveying of ice for cooling and others); Food processing (pneumatic conveying of wet food waste, meat tumblers and marinators, powder processing and others); Medical (medical suction, anaesthetic gas scavenging); Packaging (moulding, blister packaging, labelling and others); Pharmaceuticals and biotechnology (distillation, solvent recovery, filtration, degassing, pick and place and others); Plastics processing (vacuum bagging, thermoforming, extruder and melt degassing and others); Refrigeration and air conditioning (pick and place); Waste water treatment (vacuum sewerage); Woodworking (drying, clamping on CNC machining centres, pneumatic conveying and others).

Accessories and versions

• Aqua version
• ATEX version
• Oxygen version
• Gas-tight version
• IoT kit
• Aqua – for higher water vapour capacity

Versions of the Busch MINK MM 1202 AV

The Busch shop lists 11 articles of this model; where Busch states the motor version, it is given with the respective part number. Further versions on request.

Advice and service

Ehrler & Beck advises on selection, accessories and service.

Pumping speed 50Hz	200
Pumping speed 60Hz	240
Ultimate pressure	100
Rated motor power 50Hz	4.3
Rated motor power 60Hz	5.2
Weight	240

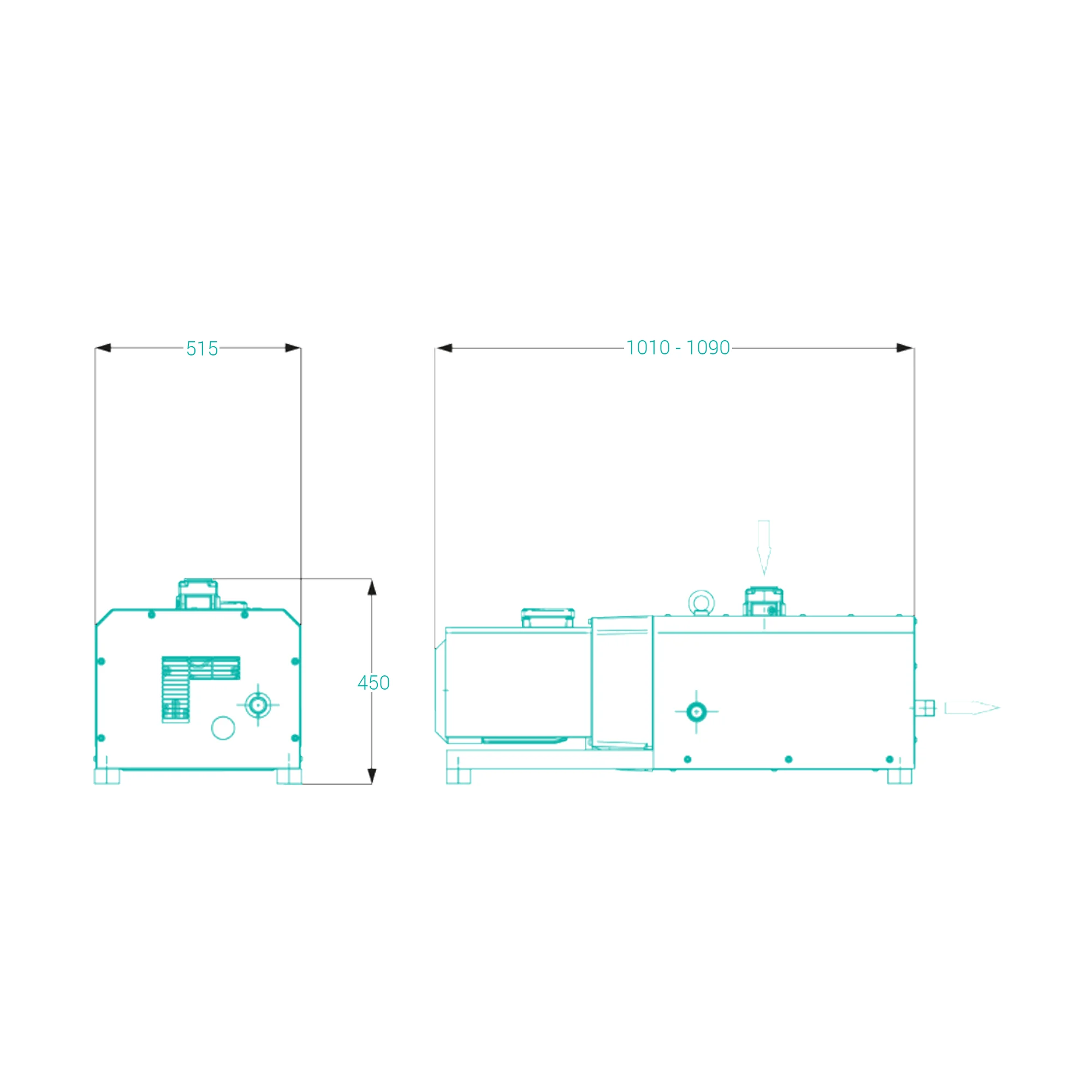

Length	101
Width	51.5
Height	45
Inlet connection flange	G 2"
Outlet connection flange	R 1"
Noise level	75 dB(A)
Oil type	Oil-free

Additional technical data
