DOLPHIN LR 2200 A

Name: DOLPHIN LR 2200 A
Brand: Busch

Series: DOLPHIN series Manufacturer: Busch Technology: Liquid ring vacuum pumps Industries: Automotive and transport, Battery manufacturing Applications: Anaesthetic gas scavenging, Biogas, landfill and digester gas

The Busch DOLPHIN LR 2200 A is a liquid ring vacuum pump with a nominal pumping speed of 14100 m³/h (50 Hz) or 22000 m³/h (60 Hz) and an ultimate pressure of 33 mbar. Ehrler & Beck advises on selection and service.

Request a quote for this product Read more

Pumping speed 14,100 m³/h 50 Hz 22,000 m³/h 60 Hz
Ultimate pressure 33 mbar
Rated motor power 315 kW 50 Hz 315 kW 60 Hz

Busch DOLPHIN LR 2200 A – liquid ring vacuum pump

The Busch DOLPHIN LR 2200 A is a liquid ring vacuum pump. The nominal pumping speed is 14100 m³/h (50 Hz) or 22000 m³/h (60 Hz), the ultimate pressure 33 mbar. Nominal motor rating 315 kW.

Features

Robust: very high vapour and particle tolerance, for harsh environments such as mining, power stations, sugar production, the pulp and paper industry or steelmaking
Powerful: large delivery capacity, high pumping speed
Flexible: modular design; grey cast iron (EN-GJL-200) with ductile iron impeller, stainless steel 304 or stainless steel 316L; operating liquids other than water and operation as a compressor possible

Typical applications

Busch lists: Biogas handling (circulation); Carbon capture (direct air capture); Confectionery (other coatings, pneumatic conveying, moulding and forming and others); Dairy products (cheese production – vacuum chambers for cheese, cheese production – pneumatic conveying, cheese production – cheese towers and others); Fish farming (holding vacuum for filleting, fish meal impregnation, pneumatic transport of live fish); Food processing (pneumatic conveying of wet food waste, meat tumblers and marinators, powder processing and others); Oil and gas (vapour recovery); Packaging (liquid packaging); Power generation (condenser air extraction); Waste water treatment (aeration process); Woodworking (impregnation, drying).

Accessories and versions

Motorised pump units, with gearbox or V-belt drive, mounted on a sturdy steel base frame
Open or closed liquid circuit
Cavitation protection
Gas ejector
Non-return valves
Vacuum relief valves

Advice and service

Ehrler & Beck advises on selection, accessories and service.

Pumping speed 50Hz	14,100
Pumping speed 60Hz	22,000
Ultimate pressure	33
Rated motor power 50Hz	315
Rated motor power 60Hz	315
Weight	12,000
Length	289.1
Width	206.5
Height	296.5
Inlet connection flange	DN 500 PN 10
Outlet connection flange	DN 500 PN 10
Noise level	85 dB(A)
Cooling method	Water cooling
Oil type	Oil-free

Additional technical data

Technical data	Value
Nominal pumping speed	14100 m³/h (50 Hz) / 22000 m³/h (60 Hz)
Ultimate pressure	33 mbar
Max. pressure	0.2 bar(g)
Rated motor power	315 / 355 / 400 / 500 / 600 kW
Nominal speed	210‒330 min⁻¹
Sound pressure level (ISO 3744, 1 m, medium load)	< 85 dB(A)

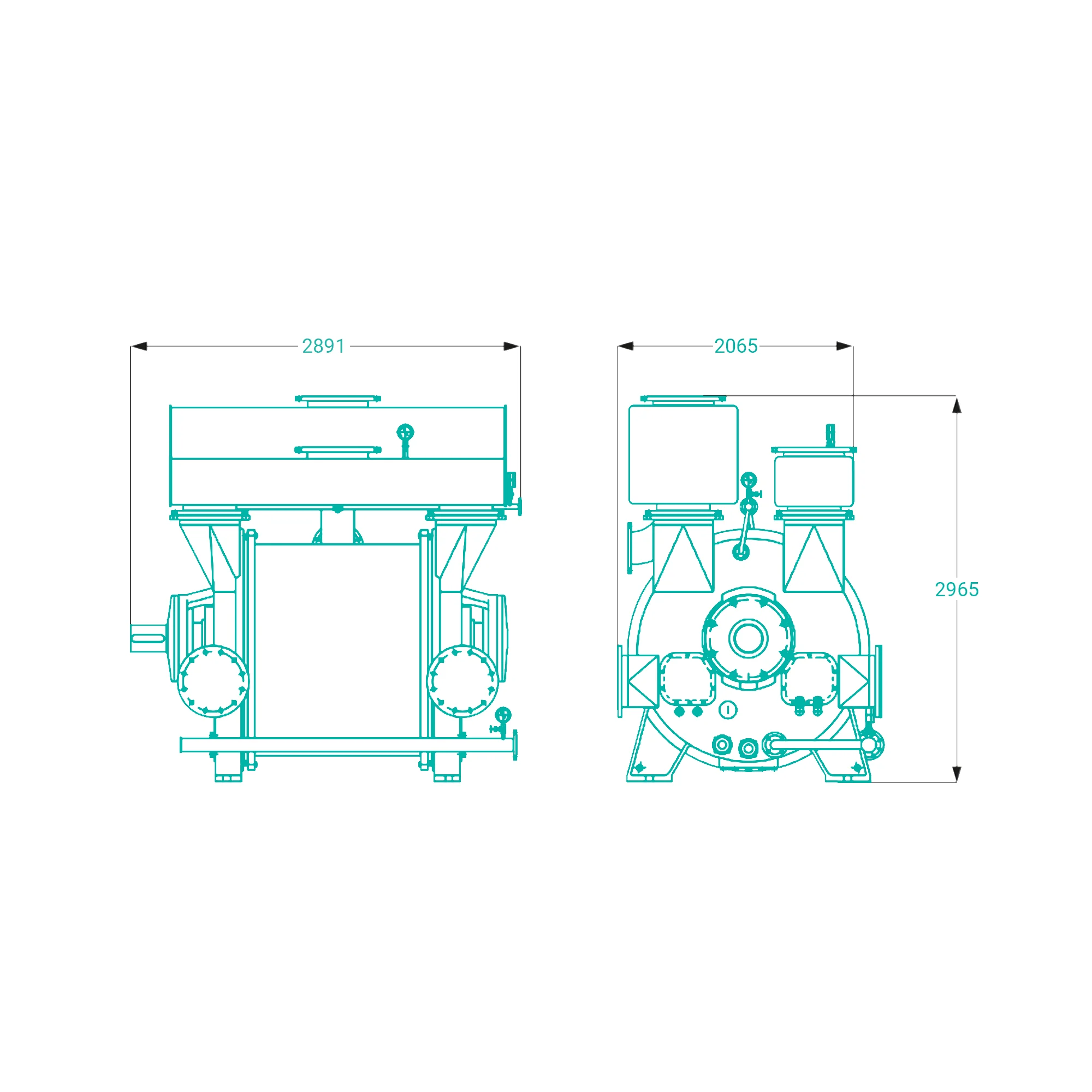

Dimensions (L × W × H)	2891 × 2065 × 2965 mm
Weight (approx.)	12000 kg
Gas inlet	DN 500 PN 10
Gas outlet	DN 500 PN 10

Product name	Part number
Service kit LG 2680 A / LR 2200 A (standard applications: V-rings V-220A/V-250A, 2 ball valves 28 mm, 2 flexible valve plates, 2 O-rings 280 × 5.0 mm)	0993 700 537
