TRIVAC D 4 B 1Ph dual voltage 100-115/210-230 V 50/60 Hz

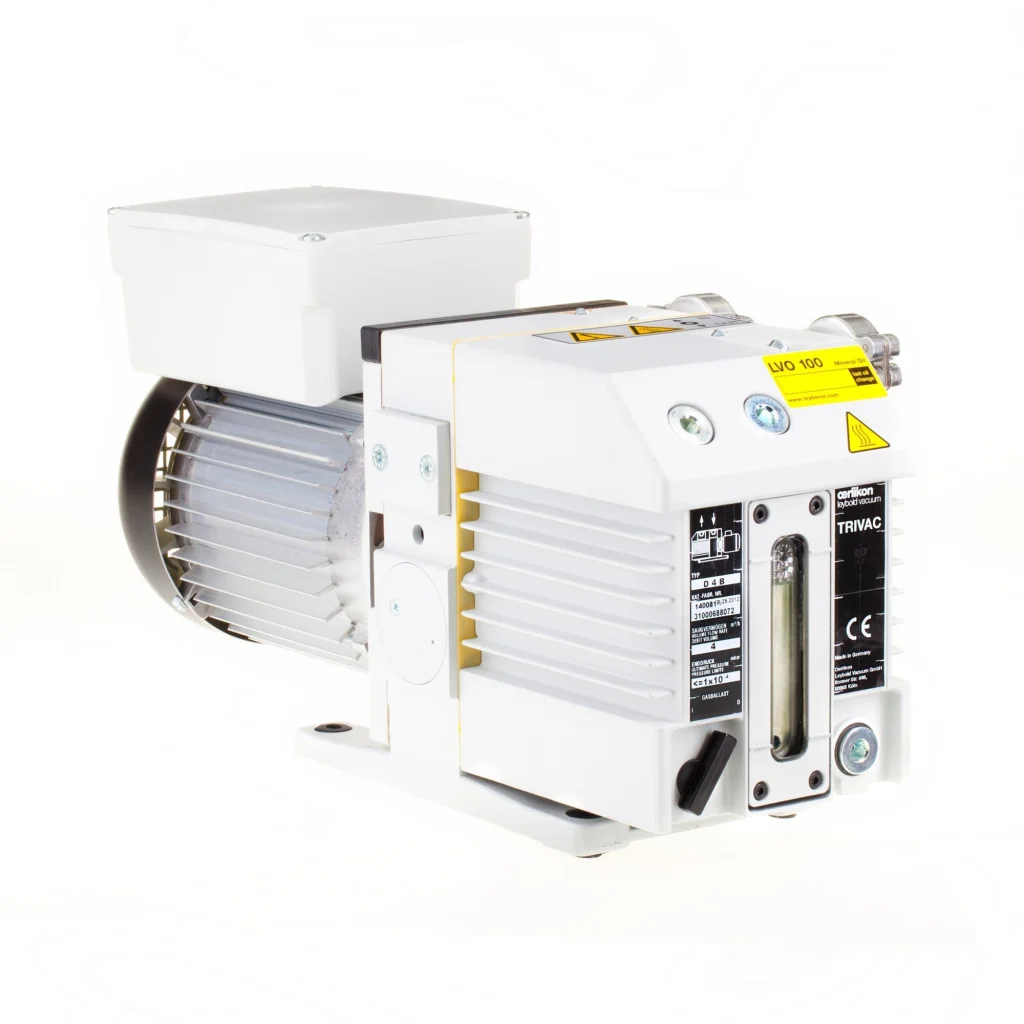

TRIVAC D 4 B – compact two-stage rotary vane pump

The Leybold TRIVAC D 4 B is a two-stage, oil-sealed rotary vane vacuum pump with a pumping speed of 4.2 m³/h at 50 Hz and 5 m³/h at 60 Hz (nominal pumping speed 4.8 m³/h). Without gas ballast it reaches an ultimate total pressure of ≤ 2 × 10⁻³ mbar. As typical applications of the TRIVAC B series, Leybold names, among others, research and development, chemical and research laboratories, analytical instruments, leak detectors, medical technology and sterilisation, and use as a backing pump in high vacuum pump systems.

Design and function

The pump body of the TRIVAC D 4 B is built from individual, pinned parts without sealing components, which makes dismantling and reassembly easier. The built-in oil pump lubricates the pump independently of pressure and allows continuous operation up to an inlet pressure of 1000 mbar. The anti-suckback valve, which is controlled via the oil pressure, prevents oil from flowing back into the vacuum chamber when the pump is switched off. With gas ballast, the water vapour tolerance is 30 mbar and the water vapour capacity 95 g/h (50 Hz) / 110 g/h (60 Hz). The intake and exhaust ports are DN 16 ISO-KF, the oil filling is 0.3 / 0.8 l, the noise level 50 / 52 dB(A) (without / with gas ballast).

Variants of the TRIVAC D 4 B

The TRIVAC D 4 B is available from Ehrler & Beck in three variants (part numbers 11245, 11246, 140081). The rated motor power ranges from 0.37 to 0.57 kW (50 Hz), the weight from 18.7 to 24.5 kg. Voltage, phase and all further data of the individual variants can be found in the variant selection and under Technical data.

Features and benefits

• Low ultimate pressure: Ultimate partial pressure below 1 × 10⁻⁴ mbar, ultimate total pressure ≤ 2 × 10⁻³ mbar without gas ballast
• High water vapour tolerance: Integrated gas ballast
• Low oil backstreaming: Anti-suckback valve controlled via the oil pressure
• Continuous operation up to 1000 mbar: Built-in oil pump with pressure-independent lubrication
• Quiet and low-vibration: Flexible coupling between motor and pump
• Easy to service: Exchangeable inner body, connections optionally vertical or horizontal

Pumping speed 50Hz	4.2
Pumping speed 60Hz	5
Ultimate pressure	2 × 10-3
Rated motor power 50Hz	0.57
Rated motor power 60Hz	0.66
Motor efficiency class	IE2
Weight	18.7
Length	45.8
Width	16.2
Height	26.5
Inlet connection flange	DN 16 ISO-KF (NW16)
Outlet connection flange	DN 16 ISO-KF (NW16)
Noise level	50 dB(A)
Cooling method	Air cooling
Oil type	LEYBONOL LVO 130

Additional technical data
