The Leybold TRIVAC D 8 B is a two-stage, oil-sealed rotary vane vacuum pump of the TRIVAC B series with a pumping speed of 8.5 m³/h (50 Hz) and an ultimate pressure of ≤ 2 × 10⁻³ mbar. Gas ballast, a pressure-independent oil pump and low oil backstreaming make it a proven pump for analytical instruments, leak detectors, laboratories and medical technology. Ehrler & Beck offers the Leybold TRIVAC D 8 B in three variants, as well as spare parts and accessories.
Request a quote for this product Read more
- Pumping speed 8.5 m³/h 50 Hz 10.2 m³/h 60 Hz
- Ultimate pressure 2 × 10-3 mbar
- Rated motor power 0.57 kW 50 Hz 0.66 kW 60 Hz
| Variant | Part number |
|---|---|
| 1Ph 230 V 50 Hz | 11255 |
| 3Ph 200-240/380-400 V 50 Hz / 200-240/380-480 V 60 Hz | 11256 |
| 1Ph dual voltage 100-115/210-230 V 50/60 Hz (selected) | 140082 |

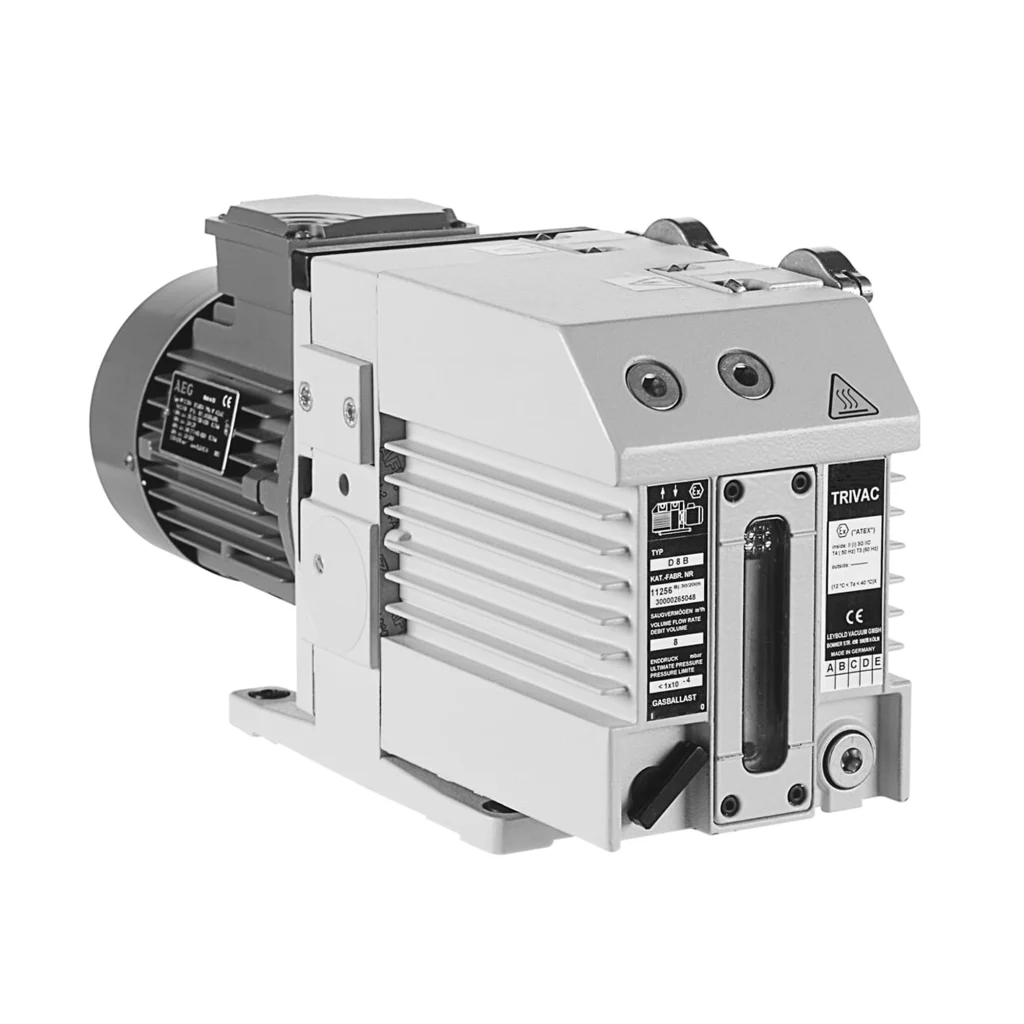

TRIVAC D 8 B – two-stage rotary vane pump with 8.5 m³/h
The Leybold TRIVAC D 8 B pumps 8.5 m³/h at 50 Hz and 10.2 m³/h at 60 Hz (nominal pumping speed 9.7 m³/h) and reaches an ultimate total pressure of ≤ 2 × 10⁻³ mbar without gas ballast. It uses the same DN 16 ISO-KF connections and the same accessories as the TRIVAC D 4 B. The fields of application named by Leybold for the TRIVAC B series include analytical instruments, leak detectors, chemical and research laboratories, medical technology, sterilisation and fore vacuum for high vacuum pump systems.Design and function
The motor and pump of the TRIVAC D 8 B are connected by a flexible coupling; together with the noise-optimised design, this results in a noise level of 50 / 52 dB(A) (without / with gas ballast). The built-in oil pump takes care of lubrication, cooling and particle transport and permits continuous operation up to an inlet pressure of 1000 mbar. The oil-pressure-controlled anti-suckback valve minimises oil backstreaming at standstill. Water vapour tolerance 25 mbar, water vapour capacity 160 g/h (50 Hz) / 190 g/h (60 Hz), oil filling 0.3 / 0.9 l. The inner body can be exchanged as a whole.Variants of the TRIVAC D 8 B
The TRIVAC D 8 B is available from Ehrler & Beck in three variants (part numbers 11255, 11256, 140082). The rated motor power ranges from 0.37 to 0.57 kW (50 Hz), the weight from 21.2 to 25.6 kg. Voltage, phase and all further data of the individual variants can be found in the variant selection and under Technical data.Features and benefits
- Low ultimate pressure: Ultimate partial pressure below 1 × 10⁻⁴ mbar, ultimate total pressure ≤ 2 × 10⁻³ mbar without gas ballast
- High water vapour tolerance: Integrated gas ballast
- Low oil backstreaming: Anti-suckback valve controlled via the oil pressure
- Continuous operation up to 1000 mbar: Built-in oil pump with pressure-independent lubrication
- Quiet and low-vibration: Flexible coupling between motor and pump
- Easy to service: Exchangeable inner body, connections optionally vertical or horizontal
| Pumping speed 50Hz | 8.5 |
|---|---|
| Pumping speed 60Hz | 10.2 |
| Ultimate pressure | 2 × 10-3 |
| Rated motor power 50Hz | 0.57 |
| Rated motor power 60Hz | 0.66 |
| Motor efficiency class | IE2 |
| Weight | 21.2 |
| Length | 48.2 |
| Width | 16.2 |
| Height | 26.5 |
| Inlet connection flange | DN 16 ISO-KF (NW16) |
| Outlet connection flange | DN 16 ISO-KF (NW16) |
| Noise level | 50 dB(A) |
| Cooling method | Air cooling |
| Oil type | LEYBONOL LVO 130 |
Additional technical data
| Technical data | Value |
|---|---|
| Nominal pumping speed | 9.7 m³/h (50 Hz) / 11.6 m³/h (60 Hz) |
| Ultimate partial pressure without gas ballast | < 1 × 10⁻⁴ mbar |
| Ultimate total pressure without gas ballast | ≤ 2 × 10⁻³ mbar |
| Ultimate total pressure with gas ballast | < 5 × 10⁻³ mbar |
| Water vapour tolerance | 25 mbar |
| Water vapour capacity | 160 g/h (50 Hz) / 190 g/h (60 Hz) |
| Oil filling min. / max. | 0.3 / 0.9 l |
| Noise level | 50 / 52 dB(A) |
| Nominal speed 50 / 60 Hz | 1500 / 1800 min⁻¹ |
| Mains voltage | 1Ph 100-115V/210-230V 50Hz / 1Ph 100-120/200-240V 50/60Hz |
| Mains phases | 1-Ph |
| Power consumption at ultimate pressure | 0.342 kW |
| IP protection class | IP 54 |
| Leak rate | 1 × 10⁻⁴ Pa·m³/s |
| Permissible ambient temperature | +12 to +40 °C |
| Operating altitude, max. | 1000 m |
| Motor certification | CE |
| Product certification | CE, RoHS, REACH |
| Materials of construction | Steel, cast iron, aluminium, FPM (FKM), glass, filter material (polymers, paper), epoxy resin and glass fibre, copper |
| Product name | Part number |
|---|---|
| Seal kit for S/D 4-8 B | 19720 |
| Complete pump module TRIVAC D 8 B | E20010991 |
| Minor maintenance kit (without oil) S/D 8 B | EK110002627 |
| Radial shaft seal kit S/D 4/8 B | EK110002631 |
| Spare parts kit TRIVAC S/D 4/8 B | EK110002634 |
| Product name | Part number |
|---|---|
| Oil filter system OF 4-25 | 10191 |
| Oil filter system CF 4-25 | 10196 |
| Condensate trap AK 4-8 DN 16 KF | 18806 |
| Exhaust filter AF 4-8 DN 16 ISO-KF | 18906 |
| Exhaust filter with oil return AR 4-8 | 18920 |
| Exhaust filter AF 8 | 19050 |
| Condensate trap AK 8 | 19060 |
| Oil drain tap M 16 x 1.5 | 19090 |
| Filter housing FH 16 with DN 16 KF flange | 140116T |
| Screw-in flange, stainless steel, DN 16 ISO-KF / M16 x 1.5 | 16840V01 |
| Mains cable Schuko (230 V) for world motor | E20081091 |
| Mains cable UK (230 V) for world motor | E20081097 |
| Mains cable CH (230 V) for world motor | E20081099 |
| Mains cable NEMA (200-240 V) for world motor | E20081141 |
| Mains cable NEMA (100-120 V) for world motor | E20081090 |
