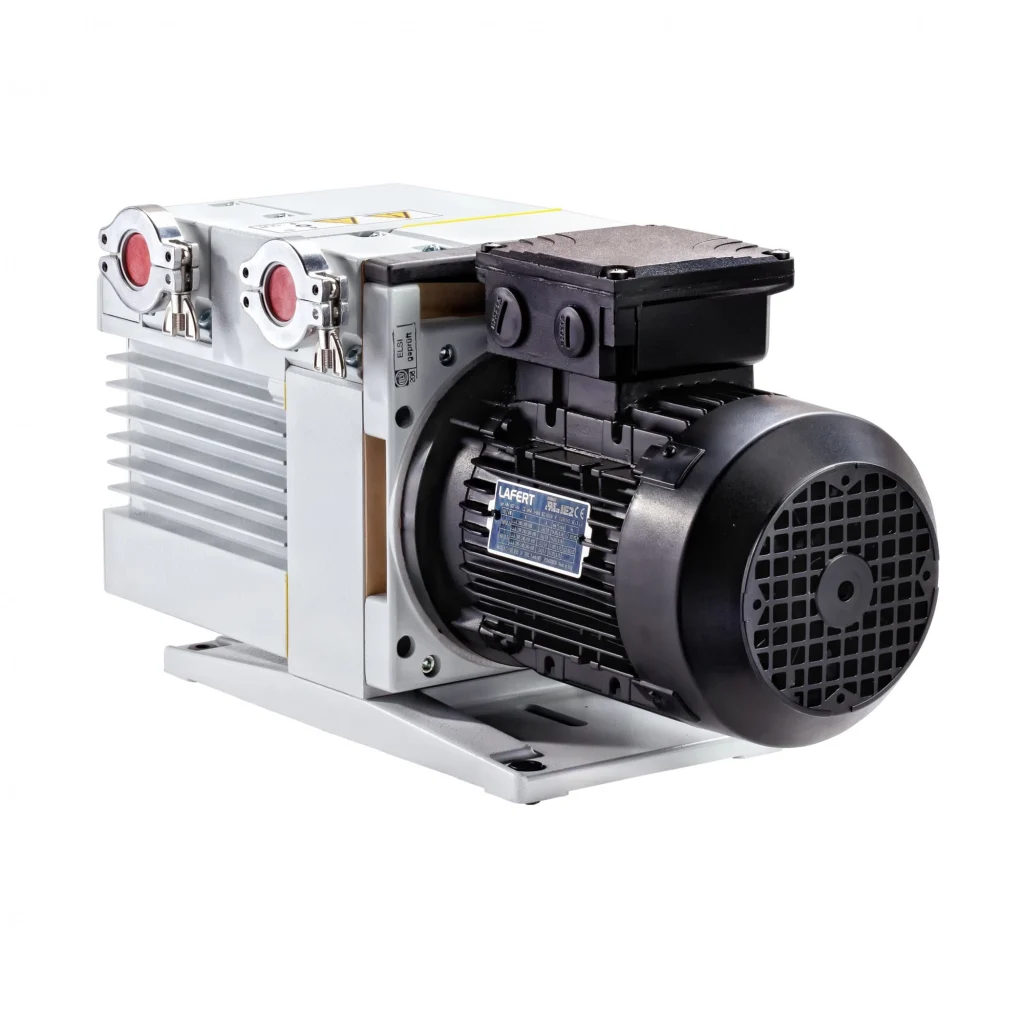

TRIVAC D 16 B 3Ph 50/60 Hz, ester oil LEYBONOL LVO 210

TRIVAC D 16 B – the versatile size of the TRIVAC B

The Leybold TRIVAC D 16 B delivers 16.5 m³/h at 50 Hz and 19.8 m³/h at 60 Hz (nominal pumping speed 18.9 m³/h) with an ultimate total pressure of ≤ 2 × 10⁻³ mbar without gas ballast. For the TRIVAC B series, Leybold names, among others, research and development, chemicals and pharmaceuticals, metallurgy and furnaces, the automotive industry, refrigeration and air conditioning, analytical instruments, freeze drying and fore vacuum for high vacuum pump systems as fields of application.

Design and function

From size D 16 B upwards, the TRIVAC B pumps have integrated cooling with a cooling channel and an additional, motor-driven fan for a constant operating temperature. The built-in oil pump lubricates independently of pressure and enables continuous operation up to an inlet pressure of 1000 mbar; the oil-pressure-controlled anti-suckback valve prevents oil from flowing back. Water vapour tolerance 25 mbar, water vapour capacity 305 g/h (50 Hz) / 370 g/h (60 Hz), oil filling 0.45 / 1.0 l, noise level 54 / 56 dB(A) (without / with gas ballast).

Special versions

The TRIVAC D 16 B-DOT works with brake fluid (DOT 4) as sealant and lubricant and is fitted with EPDM seals for this purpose; apart from the seals and the operating fluid it is identical to the TRIVAC D 16 B and, according to Leybold, is used for filling brake circuits in the automotive industry (ultimate pressure without gas ballast < 6 × 10⁻¹ mbar). The version with ester oil LEYBONOL LVO 210 is intended for applications with refrigeration oils.

Variants of the TRIVAC D 16 B

The TRIVAC D 16 B is available from Ehrler & Beck in six variants (part numbers 11266, 11325, 15130016V01CZO, 11333, 11406, 11410). The rated motor power ranges from 0.75 to 0.9 kW (50 Hz), the weight from 28 to 43.6 kg. Voltage, phase and all further data of the individual variants can be found in the variant selection and under Technical data.

Features and benefits

• Low ultimate pressure: Ultimate partial pressure below 1 × 10⁻⁴ mbar, ultimate total pressure ≤ 2 × 10⁻³ mbar without gas ballast
• High water vapour tolerance: Integrated gas ballast
• Low oil backstreaming: Anti-suckback valve controlled via the oil pressure
• Continuous operation up to 1000 mbar: Built-in oil pump with pressure-independent lubrication
• Quiet and low-vibration: Flexible coupling between motor and pump
• Easy to service: Exchangeable inner body, connections optionally vertical or horizontal

Pumping speed 50Hz	16.5
Pumping speed 60Hz	19.8
Ultimate pressure	2 × 10-3
Rated motor power 50Hz	0.75
Rated motor power 60Hz	0.75
Motor efficiency class	IE3
Weight	28
Length	50.8
Width	18.6
Height	29.8
Inlet connection flange	DN 25 ISO-KF (NW25)
Outlet connection flange	DN 25 ISO-KF (NW25)
Noise level	54 dB(A)
Cooling method	Air cooling
Oil type	DOT 4, LEYBONOL LVO 130, LEYBONOL LVO 210

Additional technical data
