SOGEVAC SV 320 B 3Ph 200-240 V / 380-415 V 50 Hz; 200-230 V / 380-400 V and 460 V 60 Hz; AIR WIDE GB standard

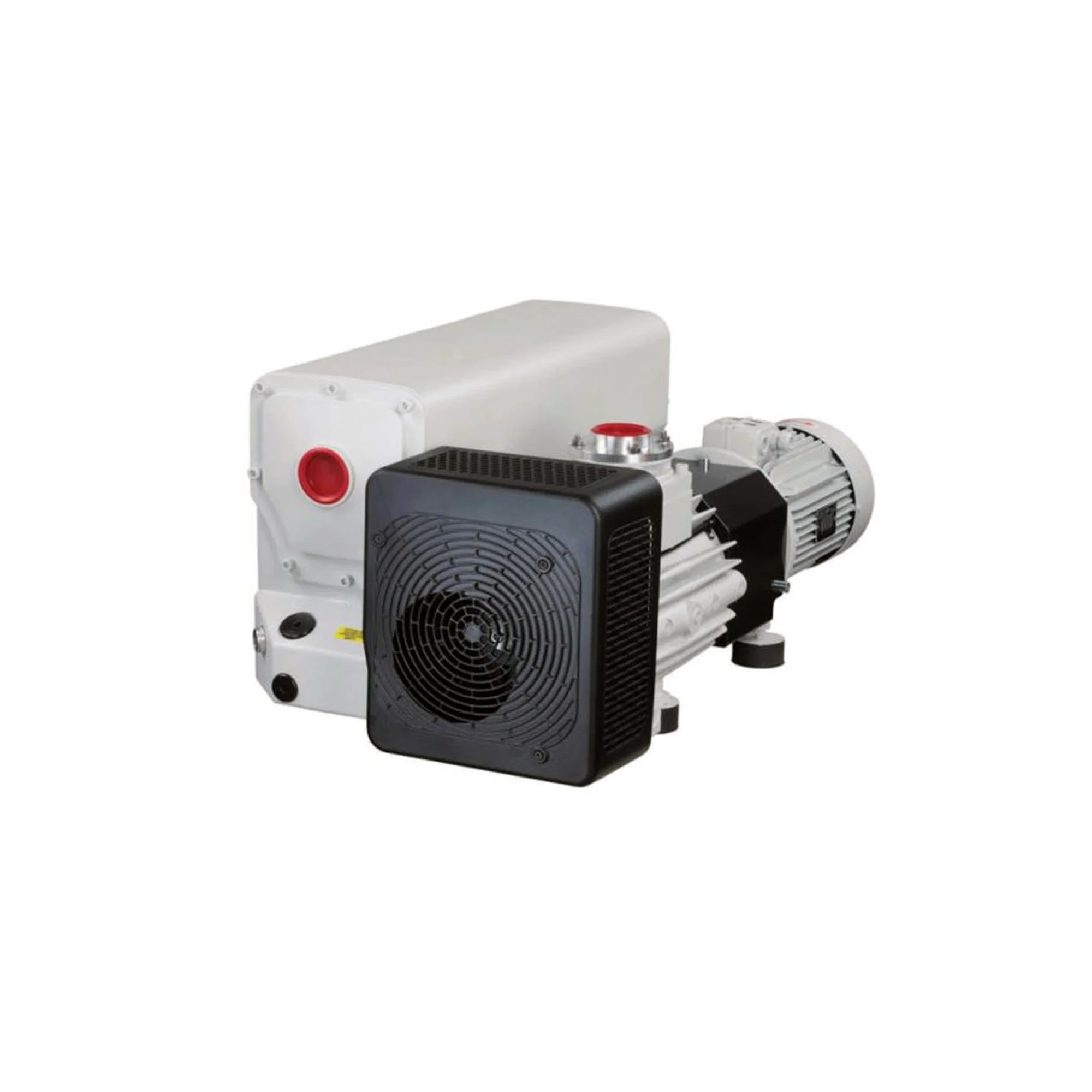

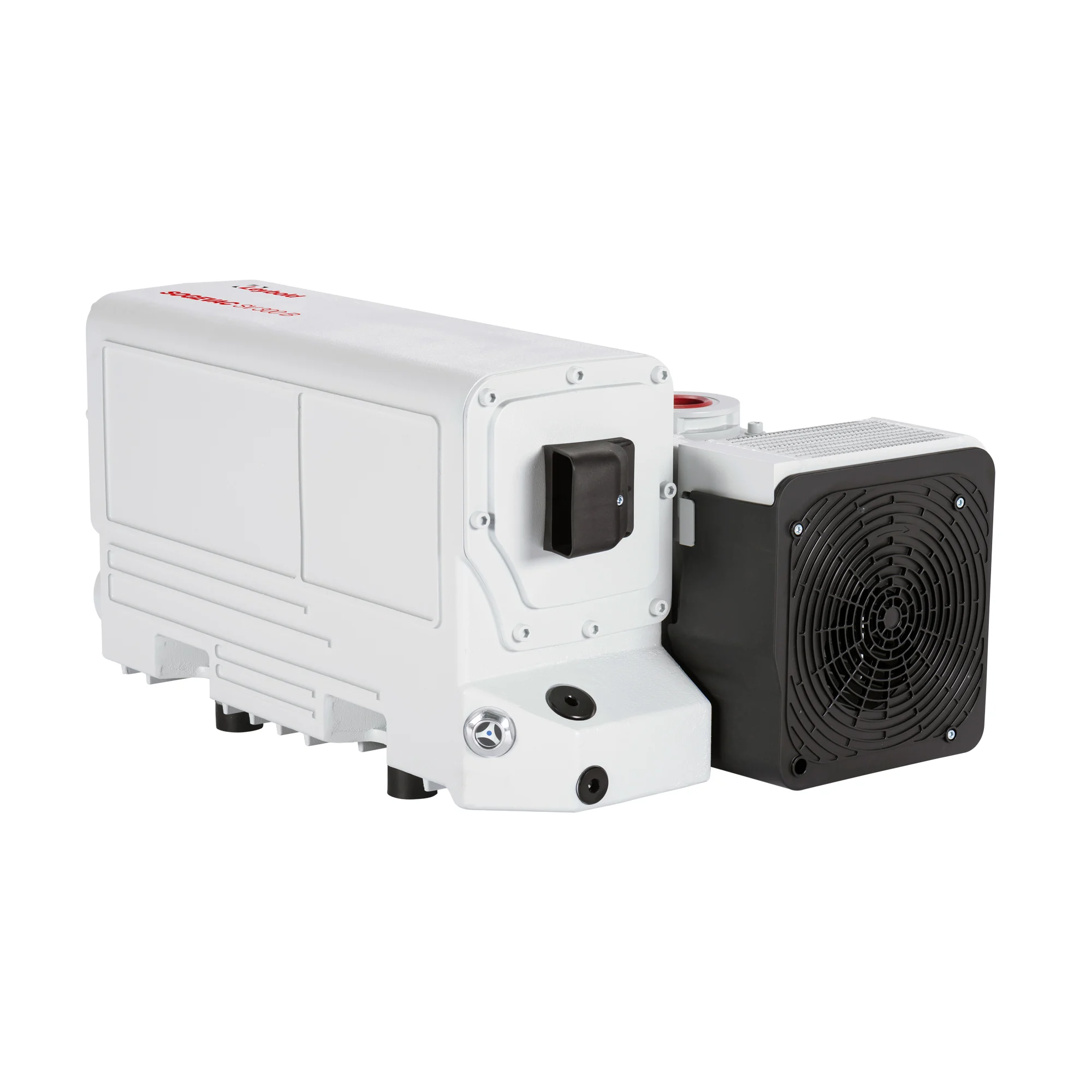

Leybold SOGEVAC SV 320 B – rotary vane pump with a pumping speed of 284 m³/h

The SOGEVAC SV 320 B is the most powerful pump of the 2" size: 284 m³/h at 50 Hz with a 7.5 kW motor and only 72 dB(A). It largely shares accessories and maintenance parts with the SV 300 B and is supplied as a wide-range version with standard gas ballast or as a HI-SPEC version. The pumping speed is 284 m³/h at 50 Hz and 330 m³/h at 60 Hz (nominal pumping speed 330 m³/h at 50 Hz). The pump measures 1120 × 565 × 450 mm, weighs 211 kg with oil filling and operates at 72 dB(A) at 50 Hz.

Typical applications

For the SOGEVAC B/D series Leybold names, among others, vacuum coating, research and development, chemistry and pharmaceuticals, metallurgy and furnace construction, lamp and tube manufacturing, the automotive industry, space simulation, environmental engineering, refrigeration and air conditioning, electrical engineering, mechanical engineering, medical technology, freeze drying, packaging and use as a backing pump for high vacuum systems.

Variants of the SOGEVAC SV 320 B

The SOGEVAC SV 320 B is available from Ehrler & Beck in six variants (part numbers 960732V, 960732TE, 960732V1706, 960732V3001, 960722V, 15030320V01FRG). The motor power is 7.5 kW (50 and 60 Hz). The variants differ in motor and mains voltage, in the gas ballast equipment and in the oil filling; the table of each variant gives Leybold's designation of the version.

Features of the SOGEVAC B/D

• Single-stage, oil-sealed rotary vane pump with integrated anti-suckback valve
• Integrated oil mist separator (exhaust filter) and oil return
• Gas ballast depending on the version: none, small, standard or large
• Three-phase wide-range and world motors; small sizes also with single-phase motor
• Standard oil LEYBONOL LVO 120 or LVO 130; special oils such as ester oil, PFPE, PAO or food-grade oil depending on the version

Pumping speed 50Hz	284
Pumping speed 60Hz	330
Ultimate pressure	0.08
Rated motor power 50Hz	7.5
Rated motor power 60Hz	7.5
Weight	211
Length	112
Width	56.5
Height	45
Inlet connection flange	G 2" female thread
Outlet connection flange	G 2" female thread
Noise level	72 dB(A)
Cooling method	Air cooling
Oil type	LEYBONOL LVO 130
