VTLF 2.250 SK 3Ph 400/690 V 50 Hz / 460/795, 400/690 V 60 Hz

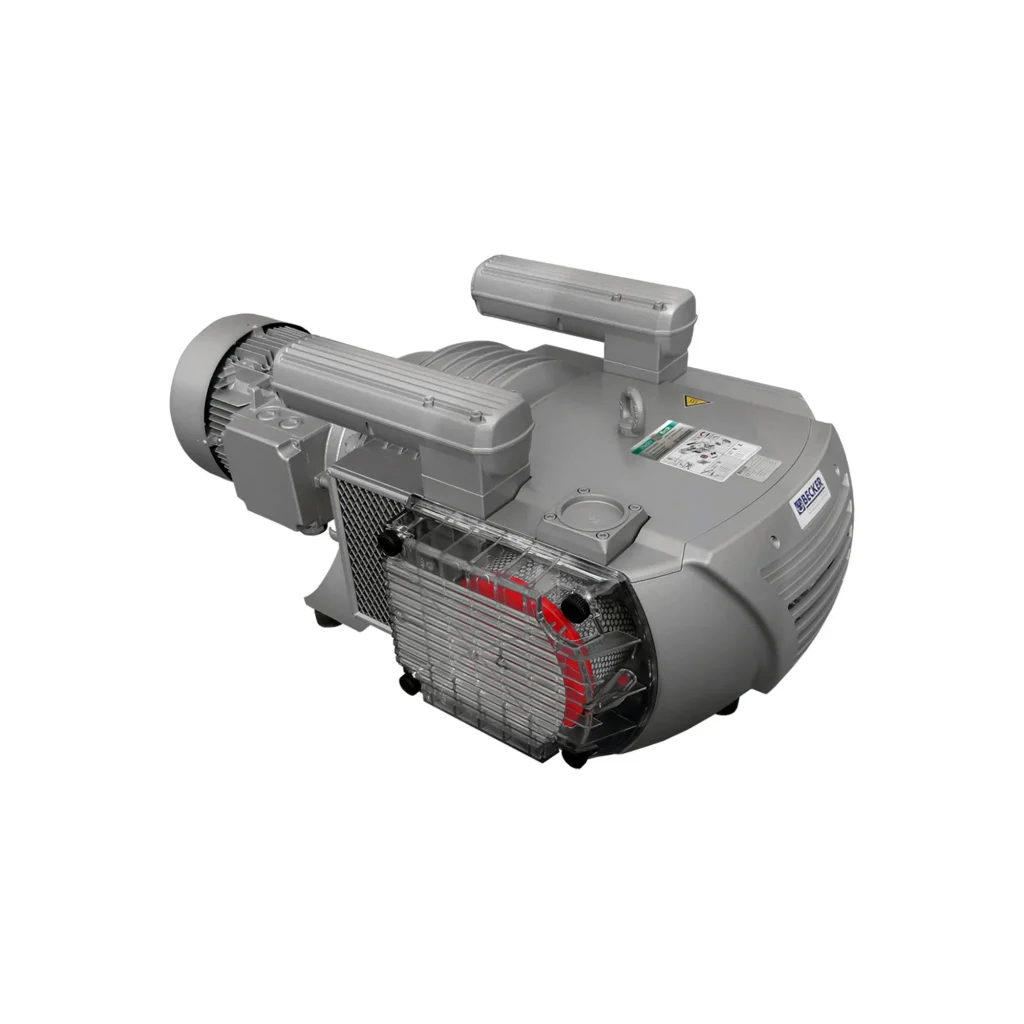

Becker VTLF 2.250 SK – oil-free rotary vane vacuum pump for high pumping speeds

The VTLF 2.250 SK delivers 247 m³/h at 50 Hz and 295 m³/h at 60 Hz and reaches a vacuum of 100 mbar absolute. The installed motor power is 7.5 kW at 50 Hz and 9.0 kW at 60 Hz, the sound pressure level 77 dB(A) and 79 dB(A) respectively. Without motor the pump weighs 161 kg; the overall length with motor is 1174–1180 mm depending on the motor, width 644 mm, height 558 mm. Suction connection G 2 1/2", exhaust connection G 2".

Dry-running rotary vane principle

The pump works without oil in the pumping chamber; there are no oil changes. The vacuum safety valve and the blow-off valve are each fitted with a silencer, and the inlet filter is integrated. Effective noise-reduction measures ensure quiet operation.

SK version with purge cooler

The SK version has a purge cooler with an additional inlet filter. It thus reaches 100 mbar absolute instead of 200 mbar like the VTLF 2.250; the motor is correspondingly larger at 7.5 kW (50 Hz).

Maintenance

The transparent filter cover shows contamination at once, and the enlarged filter area allows longer change intervals. Maintenance can be carried out on site, so downtimes stay short. The robust design is intended for long running times even under demanding conditions.

Versions and accessories

• Integrated non-return valve: version on request
• Increased corrosion protection: version on request
• External inlet filter: accessory, on request
• Acoustic hood SH 10: accessory, on request
• Further combinations: on request

Advice and service

Ehrler & Beck supports you in selecting the right size and motor version, supplies accessories and spare parts and carries out maintenance and repair.

Pumping speed 50Hz	247
Pumping speed 60Hz	295
Ultimate pressure	100
Rated motor power 50Hz	7.5
Rated motor power 60Hz	9
Motor efficiency class	IE3
Weight	268
Length	117.4
Width	64.4
Height	55.8
Inlet connection flange	G 2 1/2"
Outlet connection flange	G 2"
Noise level	77 dB(A)
Cooling method	Air cooling
Oil type	Oil-free
