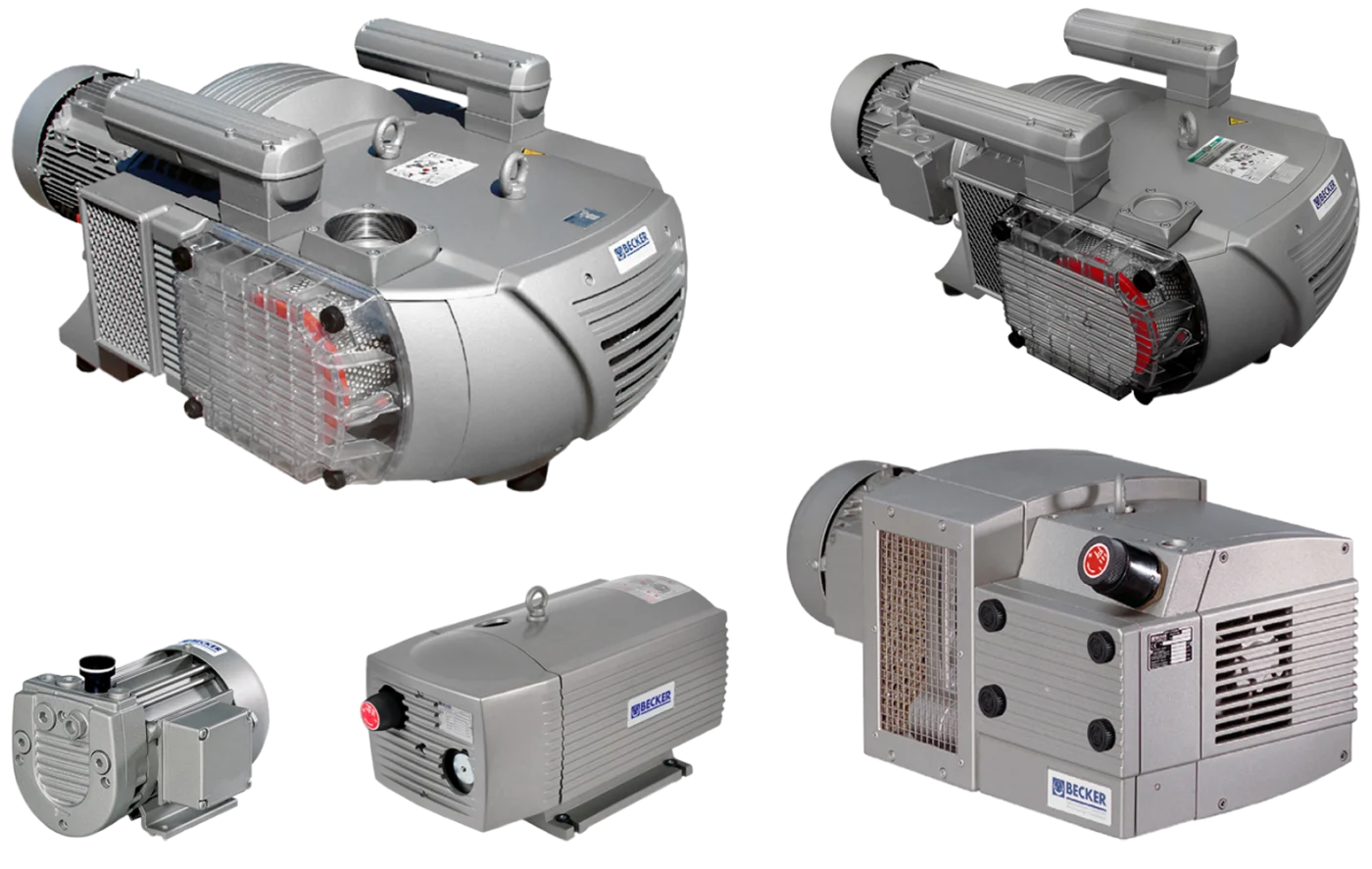

Dry-running rotary vane vacuum pumps

Becker VT / KVT / VTLF series

The VT, KVT and VTLF series comprise powerful, dry-running rotary vane vacuum pumps with a robust construction, direct drive and low maintenance and operating costs. The oil-free design and long-life vanes allow reliable, low-vibration and particularly low-wear operation.

View 40 modelsSend an enquiry

  • 40Models
  • 10Series
  • 1.9–560m³/h pumping speed at 50 Hz
  • 100mbar lowest ultimate pressure
  • 0.09–11kW rated motor power at 50 Hz
Becker VT / KVT / VTLF series

Product overview

Products of the Becker VT / KVT / VTLF series

Use the filters on the left to narrow the models down by their key figures. Each row leads to the model with its technical data and variants.

KVT series 4 models

KVT 3.60 vacuum pumpKVT 3.60Pumping speed 55 m³/h 50 Hz66 m³/h 60 HzUltimate pressure 100 mbarRated motor power 2.2 kW 50 Hz2.6 kW 60 HzVariants 6
KVT 3.80 vacuum pumpKVT 3.80Pumping speed 67 m³/h 50 Hz78.5 m³/h 60 HzUltimate pressure 100 mbarRated motor power 2.2 kW 50 Hz2.6 kW 60 HzVariants 6
KVT 3.100 vacuum pumpKVT 3.100Pumping speed 98 m³/h 50 Hz112 m³/h 60 HzUltimate pressure 100 mbarRated motor power 3 kW 50 Hz3.6 kW 60 HzVariants 8
KVT 3.140 vacuum pumpKVT 3.140Pumping speed 129 m³/h 50 Hz154 m³/h 60 HzUltimate pressure 100 mbarRated motor power 4 kW 50 Hz4.5 – 4.8 kW 60 HzVariants 7

KVX series 4 models

KVT 3.60 vacuum pumpKVX 3.60Pumping speed 55 m³/h 50 Hz66 m³/h 60 HzUltimate pressure 100 mbarRated motor power 2.2 kW 50 Hz2.6 kW 60 HzVariants 6
KVT 3.80 vacuum pumpKVX 3.80Pumping speed 67 m³/h 50 Hz78.5 m³/h 60 HzUltimate pressure 100 mbarRated motor power 2.2 kW 50 Hz2.6 kW 60 HzVariants 6
KVT 3.100 vacuum pumpKVX 3.100Pumping speed 98 m³/h 50 Hz112 m³/h 60 HzUltimate pressure 100 mbarRated motor power 3 kW 50 Hz3.6 kW 60 HzVariants 8
KVT 3.140 vacuum pumpKVX 3.140Pumping speed 129 m³/h 50 Hz154 m³/h 60 HzUltimate pressure 100 mbarRated motor power 4 kW 50 Hz4.5 – 4.8 kW 60 HzVariants 7

VARIAIR KVT series 3 models

VARIAIR KVT 3.80/0-400Pumping speed 76 m³/h 50 Hz76 m³/h 60 HzUltimate pressure 100 mbarRated motor power Variants
VARIAIR KVT 3.100/0-400Pumping speed 112 m³/h 50 Hz112 m³/h 60 HzUltimate pressure 100 mbarRated motor power Variants
VARIAIR KVT 3.140/0-400Pumping speed 145 m³/h 50 Hz145 m³/h 60 HzUltimate pressure 100 mbarRated motor power Variants

VARIAIR KVX series 3 models

VARIAIR KVX 3.80/0-400Pumping speed 76 m³/h 50 Hz76 m³/h 60 HzUltimate pressure 100 mbarRated motor power Variants
VARIAIR KVX 3.100/0-400Pumping speed 112 m³/h 50 Hz112 m³/h 60 HzUltimate pressure 100 mbarRated motor power Variants
VARIAIR KVX 3.140/0-400Pumping speed 145 m³/h 50 Hz145 m³/h 60 HzUltimate pressure 100 mbarRated motor power Variants

VARIAIR VTLF series 2 models

VARIAIR VTLF 2.250/0-400Pumping speed 280 m³/h 50 Hz280 m³/h 60 HzUltimate pressure 200 mbarRated motor power Variants
VARIAIR VTLF 2.500/0-400Pumping speed 560 m³/h 50 Hz560 m³/h 60 HzUltimate pressure 250 mbarRated motor power Variants

VARIAIR VXLF series 2 models

VARIAIR VXLF 2.250/0-400Pumping speed 280 m³/h 50 Hz280 m³/h 60 HzUltimate pressure 200 mbarRated motor power Variants
VARIAIR VXLF 2.500/0-400Pumping speed 560 m³/h 50 Hz560 m³/h 60 HzUltimate pressure 250 mbarRated motor power Variants

VTLF series 6 models

VTLF 2.200 vacuum pumpVTLF 2.200Pumping speed 178 m³/h 50 Hz218 m³/h 60 HzUltimate pressure 200 mbarRated motor power 4 kW 50 Hz4.8 kW 60 HzVariants 4
VTLF 2.250 vacuum pumpVTLF 2.250Pumping speed 244 m³/h 50 Hz286 m³/h 60 HzUltimate pressure 200 mbarRated motor power 5.5 kW 50 Hz6.6 kW 60 HzVariants 5
VTLF 2.250 SKPumping speed 247 m³/h 50 Hz295 m³/h 60 HzUltimate pressure 100 mbarRated motor power 7.5 kW 50 Hz9 kW 60 HzVariants 4
VTLF 2.360 vacuum pumpVTLF 2.360Pumping speed 351 m³/h 50 Hz402 m³/h 60 HzUltimate pressure 250 mbarRated motor power 11 kW 50 Hz13.2 kW 60 HzVariants 4
VTLF 2.400 vacuum pumpVTLF 2.400Pumping speed 390 m³/h 50 Hz460 m³/h 60 HzUltimate pressure 200 mbarRated motor power 7.5 – 11 kW 50 Hz9 – 13.2 kW 60 HzVariants 5
VTLF 2.500 vacuum pumpVTLF 2.500Pumping speed 495 m³/h 50 Hz570 m³/h 60 HzUltimate pressure 250 mbarRated motor power 11 kW 50 Hz13.2 kW 60 HzVariants 4

VT series 7 models

VT 4.2 vacuum pumpVT 4.2Pumping speed 1.9 m³/h 50 Hz2.3 m³/h 60 HzUltimate pressure 400 mbarRated motor power 0.09 kW 50 Hz0.105 kW 60 HzVariants 1
VT 4.4 vacuum pumpVT 4.4Pumping speed 4.1 m³/h 50 Hz4.7 m³/h 60 HzUltimate pressure 150 mbarRated motor power 0.18 kW 50 Hz0.21 – 0.22 kW 60 HzVariants 2
VT 4.8 vacuum pumpVT 4.8Pumping speed 8 m³/h 50 Hz9.1 m³/h 60 HzUltimate pressure 150 mbarRated motor power 0.3 – 0.37 kW 50 Hz0.35 – 0.44 kW 60 HzVariants 3
VT 4.10 vacuum pumpVT 4.10Pumping speed 10 m³/h 50 Hz12 m³/h 60 HzUltimate pressure 150 mbarRated motor power 0.37 kW 50 Hz0.44 – 0.45 kW 60 HzVariants 3
VT 4.16 vacuum pumpVT 4.16Pumping speed 16 m³/h 50 Hz19 m³/h 60 HzUltimate pressure 150 mbarRated motor power 0.55 kW 50 Hz0.66 – 0.7 kW 60 HzVariants 4
VT 4.25 vacuum pumpVT 4.25Pumping speed 25 m³/h 50 Hz30 m³/h 60 HzUltimate pressure 150 mbarRated motor power 0.75 – 0.8 kW 50 Hz0.9 – 1 kW 60 HzVariants 5
VT 4.40 vacuum pumpVT 4.40Pumping speed 40 m³/h 50 Hz48 m³/h 60 HzUltimate pressure 150 mbarRated motor power 1.1 – 1.3 kW 50 Hz1.1 – 1.5 kW 60 HzVariants 5

VXLF series 5 models

VTLF 2.200 vacuum pumpVXLF 2.200Pumping speed 178 m³/h 50 Hz218 m³/h 60 HzUltimate pressure 200 mbarRated motor power 4 kW 50 Hz4.8 kW 60 HzVariants 4
VTLF 2.250 vacuum pumpVXLF 2.250Pumping speed 244 m³/h 50 Hz286 m³/h 60 HzUltimate pressure 200 mbarRated motor power 5.5 kW 50 Hz6.6 kW 60 HzVariants 5
VXLF 2.250 SKPumping speed 247 m³/h 50 Hz295 m³/h 60 HzUltimate pressure 100 mbarRated motor power 7.5 kW 50 Hz9 kW 60 HzVariants 4
VTLF 2.400 vacuum pumpVXLF 2.400Pumping speed 390 m³/h 50 Hz460 m³/h 60 HzUltimate pressure 200 mbarRated motor power 7.5 – 11 kW 50 Hz9 – 13.2 kW 60 HzVariants 5
VTLF 2.500 vacuum pumpVXLF 2.500Pumping speed 495 m³/h 50 Hz570 m³/h 60 HzUltimate pressure 250 mbarRated motor power 11 kW 50 Hz13.2 kW 60 HzVariants 4

VX series 4 models

VT 4.10 vacuum pumpVX 4.10Pumping speed 10 m³/h 50 Hz12 m³/h 60 HzUltimate pressure 100 mbarRated motor power 0.37 kW 50 Hz0.44 – 0.45 kW 60 HzVariants 3
VT 4.16 vacuum pumpVX 4.16Pumping speed 16 m³/h 50 Hz19 m³/h 60 HzUltimate pressure 100 mbarRated motor power 0.55 kW 50 Hz0.66 – 0.7 kW 60 HzVariants 4
VT 4.25 vacuum pumpVX 4.25Pumping speed 25 m³/h 50 Hz30 m³/h 60 HzUltimate pressure 100 mbarRated motor power 0.75 – 0.8 kW 50 Hz0.9 – 1 kW 60 HzVariants 5
VT 4.40 vacuum pumpVX 4.40Pumping speed 40 m³/h 50 Hz48 m³/h 60 HzUltimate pressure 100 mbarRated motor power 1.1 – 1.3 kW 50 Hz1.1 – 1.5 kW 60 HzVariants 5

Model comparison

About the series

Features and benefits of the VT / KVT / VTLF series

The series at a glance

With integrated intake filters and regulating valves as well as a compact cover hood, the pumps offer easy installation, low noise emissions and low heat radiation. Depending on the version, optional corrosion protection also allows humid air to be conveyed.

The VARIAIR UNIT with integrated frequency inverter automatically adapts the pump output to actual demand. This reduces energy consumption and intake noise, ensures a constant vacuum and minimises the mechanical load during start-up.

With the VT, KVT and VTLF series, Becker underlines its commitment to reliable, efficient and oil-free vacuum technology. The versatile vacuum pumps offer a robust construction, low operating costs, low maintenance requirements and a long service life – for high productivity and reliable performance in a wide variety of industrial applications.

Efficient

The Becker VT, KVT and VTLF vacuum pumps offer efficient, oil-free vacuum generation and reliable continuous operation. Their compact design and optimised drive allow space-saving installation combined with high vacuum performance. Depending on the range, different performance sizes are available, so the pumps can be adapted flexibly to various industrial applications.

Robust design

The VT, KVT and VTLF series are characterised by a robust and durable construction. The proven oil-free rotary vane or claw technology allows reliable operation with low maintenance requirements. High-quality, low-wear components support a long service life and make the pumps a reliable solution for continuous industrial use.

Clean operation

The oil-free technology of the Becker VT, KVT and VTLF vacuum pumps allows clean and reliable operation without oil in the compression chamber. This reduces the risk of oil contamination of the pumped medium – an important advantage for applications that require clean process air and reliable vacuum generation. At the same time, dry operation supports low-maintenance and economical plant operation.

Operating principle

The Becker VT, KVT and VTLF series are based on proven dry-running technology and operate completely oil-free. Depending on the range, robust rotary vane or claw principles are used, which allow reliable vacuum generation without operating fluids such as oil. This makes the pumps particularly suitable for applications that require clean and oil-free process air.

The precisely manufactured components and low-wear materials ensure efficient operation, low maintenance requirements and a long service life. At the same time, the Becker pumps offer a compact design, low energy consumption and reliable vacuum performance – even in demanding industrial applications.

The technology page shows the operating principle with an interactive drawing: Dry-running rotary vane vacuum pumps.

Standard operating conditions and performance

  • Ambient temperature and intake air temperature: 0 to 40 °C
  • Designed for dry, oil-free vacuum applications

Frequently asked questions

Questions about the Becker VT / KVT / VTLF series

Which models does the Becker VT / KVT / VTLF series comprise?
The Ehrler & Beck catalogue lists 40 models of the series. The product overview names each model with its key figures and the number of its variants; the model page shows the technical data.
Which pumping speeds does the series cover?
At 50 Hz the models cover pumping speeds from 1.9 to 560 m³/h. The figure comes from the product data of the individual models; values for 60 Hz, where available, are given in the product overview.
What ultimate pressure do the models of the series reach?
Depending on the model, the ultimate pressure lies between 100 and 400 mbar. The figures on the page of the respective model are decisive.
How does the technology of the series work?
The series belongs to the field of dry-running rotary vane vacuum pumps. The technology page explains the operating principle with an interactive drawing and names all series of this technology.
Does Ehrler & Beck supply spare parts and service for the Becker VT / KVT / VTLF series?
Yes. Ehrler & Beck supplies the models of the series as well as spare parts and accessories and takes care of maintenance and repair. For a quotation, an enquiry with the model or part number is all it takes.

Which model fits your process?

Tell us the gas to be conveyed, the working pressure and the flow rate you need – we will advise you on selection, spare parts and service.
