U 4.20Pumping speed 18 m³/hUltimate pressure 1 mbarU 4.40
The Becker U 4.40 is an oil-lubricated, air-cooled rotary vane vacuum pump with a pumping speed of 41 m³/h at 50 Hz (48 m³/h at 60 Hz) and an ultimate pressure of 0.5 mbar. Becker supplies it with a three-phase or single-phase motor. Ehrler & Beck advises on selection, accessories and service.
Request a quote for this product Read more
- Pumping speed 41 m³/h 50 Hz 48 m³/h 60 Hz
- Ultimate pressure 0.5 mbar
- Rated motor power 1.5 kW 50 Hz 1.8 kW 60 Hz

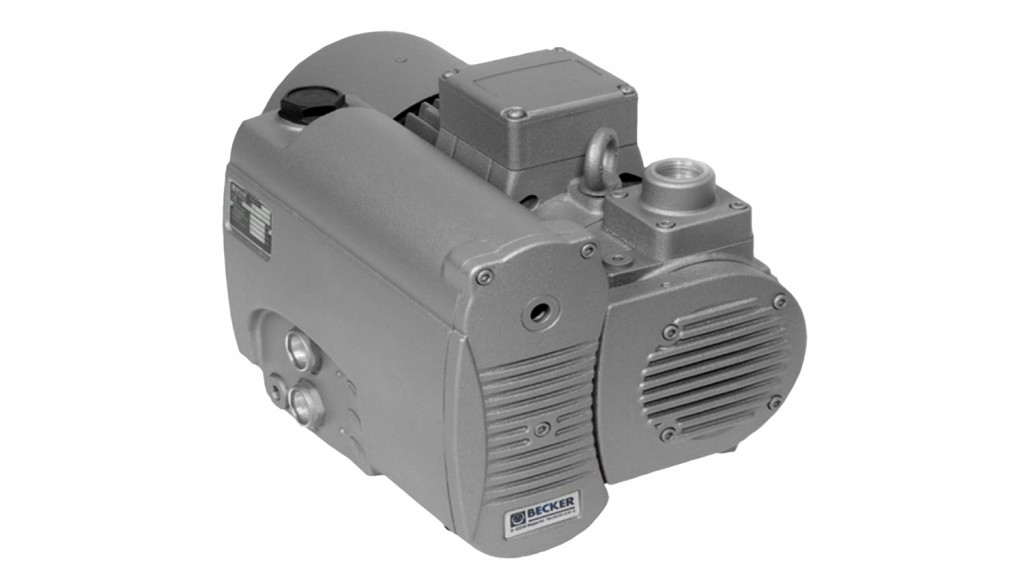

Becker U 4.40 – oil-lubricated rotary vane vacuum pump
The U 4.40 delivers 41 m³/h at 50 Hz and 48 m³/h at 60 Hz (tolerance ±5 %) and reaches an ultimate pressure of 0.5 mbar. Three-phase motor 1.5 / 1.8 kW at 50 / 60 Hz (IE3); for single-phase supply there is one motor for 50 Hz (1.5 kW) and one for 60 Hz (1.8 kW). Sound pressure level 69 / 71 dB(A) at 50 / 60 Hz. Weight approx. 38 kg; length 462 or 465 mm, height 264 or 280 mm depending on the motor; housing width 269 or 277 mm, plus a part projecting approx. 62 mm at the side. Suction connection G 1" with integrated non-return valve, exhaust connection G 3/4"; oil filling 1.0 l (Becker Lube M 100, S 100 or SL 100). Becker lists a gas ballast valve and an external inlet filter as options. Data according to the Becker data sheet of 02.04.2019.Availability
The U 4.40 is no longer in the international Becker product range catalogue 01/2026, and its data sheet is in the archive of the Becker download centre. Becker Pumps in the USA still lists it in its U series (as of October 2026). Ehrler & Beck checks availability on request. Alternatives in the current Becker range are the Becker U 5.40 (XL K) with 40 m³/h and an ultimate pressure of 1 mbar and the Becker U 5.45 with 45 m³/h and 0.5 mbar (each at 50 Hz).Advice and service
Ehrler & Beck supports you in the selection, supplies oil, filters and spare parts and carries out maintenance and repair.| Pumping speed 50Hz | 41 |
|---|---|
| Pumping speed 60Hz | 48 |
| Ultimate pressure | 0.5 |
| Rated motor power 50Hz | 1.5 |
| Rated motor power 60Hz | 1.8 |
| Motor efficiency class | IE3 |
| Weight | 38 |
| Length | 46.5 |
| Height | 28 |
| Inlet connection flange | G 1" |
| Outlet connection flange | G 3/4" |
| Noise level | 69 dB(A) |
| Cooling method | Air cooling |
Convert units: vacuum and pressure units · Nm³/h to m³/h
| Product name | Part number |
|---|---|
| Blow-off valve | 727503 99628 |
| Connection screw | 912300 00000 |
| Connection screw | 912317 00000 |
| Connection screw | 912318 00000 |
| Connection screw (variant /09, with gas ballast valve) | 912304 00000 |
| Blind rivet | 948750 00000 |
| Cover | 003700 40500 |
| Sealing ring (variant /0-25, /0-56, with oil-to-water heat exchanger) | 948030 00000 |
| Sealing ring (variant /09, with gas ballast valve) | 948002 00000 |
| Gasket (variant UL-certified motors) | 003101 40500 |
| Seal kit | 549000 40500 |
| Nozzle | 003300 10700 |
| Nozzle (index A, B, C, D) | 953116 00000 |
| Nozzle (without index) | 953103 00000 |
| Filter (variant /09, with gas ballast valve) | 740001 01000 |
| Gas ballast valve (variant /09, with gas ballast valve) | 768717 99626 |
| Gas ballast valve, complete (variant /09, with gas ballast valve) | 568701 99683 |
| Housing, complete (index A, B, C, D) | 500102 40500 |
| Housing, complete (without index) | 500101 40500 |
| Threaded flange | 007801 40500 |
| Threaded flange 90° (index A, without index) | 007802 40500 |
| Threaded pin | 945618 00000 |
| Threaded pin | 945634 00000 |
| Threaded pin | 945801 01000 |
| Rubber buffer | 741310 60000 |
| Rubber buffer | 741310 80000 |
| Holder ring | 917800 40500 |
| Handle | 921500 50000 |
| Hollow screw | 948407 00000 |
| Banjo bolt (variant /0-25, /0-56, with oil-to-water heat exchanger) | 948402 00000 |
| Hex socket screw | 945320 00000 |
| Hex socket screw | 945321 00000 |
| Hex socket screw | 945373 00000 |
| Hex socket screw | 945374 00000 |
| Rotor | 020000 40500 |
| Spherical piece screw | 009400 19000 |
| Cooler (index A, B, C, D) | 960201 40500 |
| Cooler (without index) | 960200 40500 |
| Cooler (variant /0-25, /0-56, with oil-to-water heat exchanger) | 960205 40300 |
| Pipe | 012200 40300 |
| Pipe (index A, B, C, without index) | 012203 40500 |
| Pipe (index A, B, C, without index) | 012204 40500 |
| Pipe (index D) | 012211 40500 |
| Pipe (index D) | 012212 40500 |
| Pipe (variant /0-25, /0-56, with oil-to-water heat exchanger) | 012205 40500 |
| Pipe (variant /0-25, /0-56, with oil-to-water heat exchanger) | 012206 40500 |
| Pipe (variant /09, with gas ballast valve) | 512000 40500 |
| Pipe (~3) (index B) | 012207 40500 |
| Pipe (~3) (index B) | 012208 40500 |
| Oil separator element | 965414 00000 |
| Fan cowl (index A, B, without index) | 960700 40500 |
| Fan cowl (variant /0-25, /0-56, with oil-to-water heat exchanger) | 460700 40500 |
| Fan cowl (~3) (index B) | 960702 40500 |
| Level sensor (optional) | 741103 99682 |
| Oil separator housing (index A, B, C, D) | 002402 40500 |
| Oil separator housing (without index) | 002401 40500 |
| Oil sight glass | 907309 00000 |
| Key | 947701 00000 |
| Non-return valve | 537506 99633 |
| Vanes (set) | 900585 00003 |
| Screw cap | 916800 10000 |
| Float | 867800 99559 |
| Hexagon nut | 947105 00000 |
| Hexagon bolt | 945218 00000 |
| Side plate (variant UL-certified motors) | 917802 40500 |
| Side cover (index A, B, C, D) | 000701 40500 |
| Side cover (without index) | 000700 40500 |
| Side cover (variant /09, with gas ballast valve) | 000702 40500 |
| Sieve | 005000 40500 |
| Sieve | 005001 40300 |
| Tension disc | 016800 05000 |
| Tension disc | 016802 40300 |
| Stud | 946917 00000 |
| Stud (variant UL-certified motors) | 946918 00000 |
| Support | 068100 40300 |
| Support (variant UL-certified motors) | 968100 40500 |
| Disc spring | 917107 00000 |
| Temperature sensor PT100 (optional; index A, B, C, D) | 943402 60000 |
| Valve, complete (index A, B, C, D) | 537500 26200 |
| Valve, complete (without index) | 537500 10700 |
| Plug | 951219 00000 |
| Screw plug (index A, B, C, D) | 951221 00100 |
| Screw plug (without index) | 951221 00000 |
| Screw plug G 1/4 (without index) | 951228 02000 |
| Shaft end screw | 901807 00000 |
| Toothed lock washer | 949203 00000 |
| Intermediate flange (variant UL-certified motors; index C) | 068000 40500 |
| Intermediate piece | 068101 40500 |
| Cylinder head screw | 946308 00000 |
| Dowel pin | 947628 01000 |
