DZS 065A without motor (bare shaft), 50 Hz

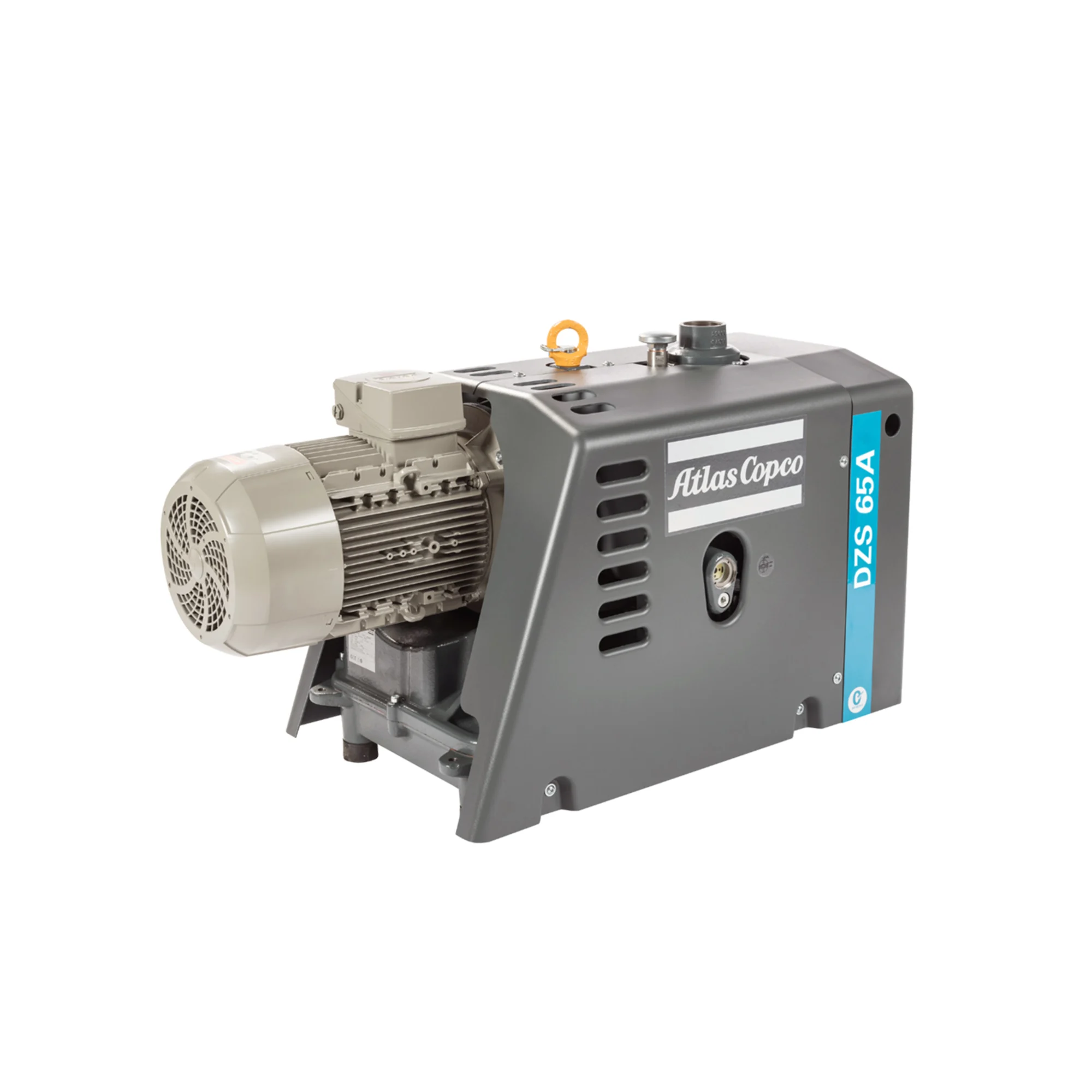

Atlas Copco DZS 065A – the smallest claw pump of the second DZS generation

The DZS 065A delivers 65 m³/h at 50 Hz and 78 m³/h at 60 Hz and reaches 50 mbar(a) in continuous operation. The motor delivers 1.8 kW (60 Hz: 2.2 kW). Atlas Copco states 879 × 401 × 501 mm (L × W × H) and a unit weight of 153 kg (IE3 motor) / 154 kg (IE4 motor). Connection is via G 1 1/4" at the inlet and outlet; the 60 Hz versions are supplied with NPT adapters.

Dry, contact-free, low-maintenance

The pump runs without oil in the pumping chamber – there is no contaminated oil to dispose of. Only the gearbox is filled with 0.7 l of oil. According to Atlas Copco, long-life bearings and seals, a separate, isolated pump element and the easily accessible pump chamber make maintenance easier.

Applications of the range

For the DZS A range, Atlas Copco lists, among others, CNC milling and clamping, plastics processing (pneumatic conveying, extrusion), vacuum sewage systems, drying, sterilisation, pick-and-place and central vacuum systems.

Variants of the DZS 065A

The DZS 065A is available from Ehrler & Beck in twelve variants (part numbers 3002615213, 3002615214, 3002615215, 3002615216, 3002615217, 3002615218, 3002615220, 3002615328, 3081500048, 3002615257, 3002615260, 3002615259): three for 50 Hz, three for 60 Hz and two without motor. The motor power is 1.8 kW at 50 Hz and 2.2 kW at 60 Hz; the 50 Hz version with 400 V is additionally available with an IE4 motor. In addition there are four oxygen versions (O2): 400 V 50 Hz with IE4 motor as well as 380 V, 230/460 V and 575 V at 60 Hz. Separate operating instructions from Atlas Copco apply to operation with oxygen (301317524).

Features of the DZS range

• Dry-running: oil-free pumping chamber, no contaminated oil to dispose of
• Simple maintenance: durable bearings and seals, separate pump element, easily accessible pumping chamber
• Modular design: flexible and favourable in maintenance and life-cycle costs
• Wide choice: versions without motor, with IE4 motor and fixed speed, and with variable speed (VSD+)
• Inlet non-return valve: isolates the pump from the process when it is switched off
• Silencer: less pump noise for a quieter working environment

Pumping speed 50Hz	65
Pumping speed 60Hz	78
Ultimate pressure	50
Rated motor power 50Hz	1.8
Rated motor power 60Hz	2.2
Motor efficiency class	IE3
Weight	132
Length	87.9
Width	40.1
Height	50.1
Inlet connection flange	G 1 1/4"
Outlet connection flange	G 1 1/4"
Noise level	72 dB(A)
Cooling method	Air cooling
Oil type	Oil-free
