Dry-running rotary vane vacuum pumps

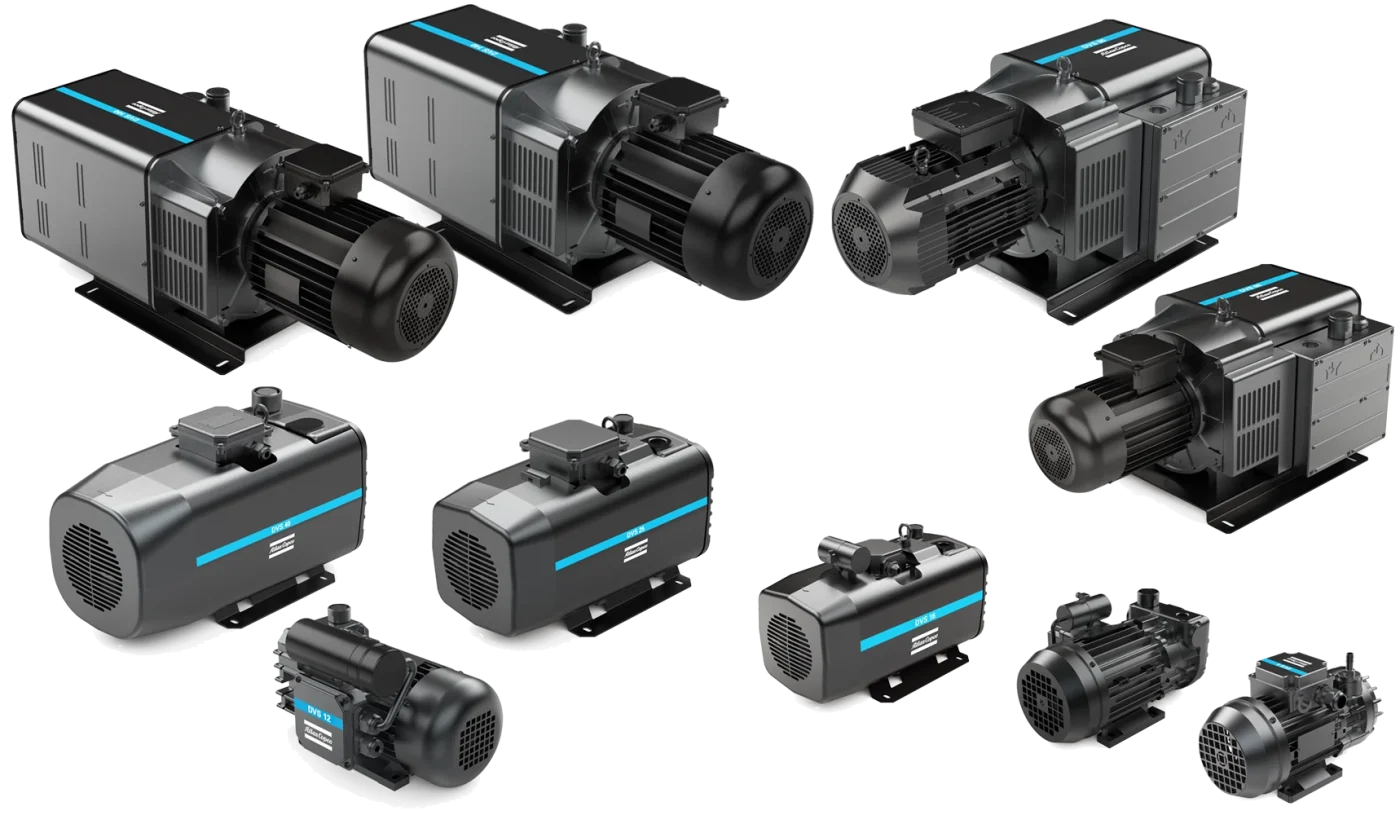

Atlas Copco DVS series
The Atlas Copco DVS series is a powerful range of dry-running vacuum pumps developed for reliable and clean vacuum generation in numerous industrial applications. The proven oil-free rotary vane principle allows low-maintenance operation and is particularly suitable for processes that require an oil-free vacuum.
- 10Models
- 5–130m³/h pumping speed at 50 Hz
- 120mbar lowest ultimate pressure
- 0.12–3.4kW rated motor power at 50 Hz
Product overview
Products of the Atlas Copco DVS series
Use the filters on the left to narrow the models down by their key figures. Each row leads to the model with its technical data and variants.
DVS 5Pumping speed 5 m³/h 50 Hz6 m³/h 60 HzUltimate pressure 120 mbarRated motor power 0.12 kW 50 Hz0.15 kW 60 HzVariants 3
DVS 8Pumping speed 8 m³/h 50 Hz9 m³/h 60 HzUltimate pressure 150 mbarRated motor power 0.25 kW 50 Hz0.3 kW 60 HzVariants 3DVS 16Pumping speed 16 m³/h 50 Hz19 m³/h 60 HzUltimate pressure 120 mbarRated motor power 0.75 kW 50 Hz0.9 kW 60 HzVariants 3DVS 25Pumping speed 25 m³/h 50 Hz29 m³/h 60 HzUltimate pressure 120 mbarRated motor power 0.75 kW 50 Hz0.9 kW 60 HzVariants 3DVS 40Pumping speed 40 m³/h 50 Hz48 m³/h 60 HzUltimate pressure 120 mbarRated motor power 1.3 kW 50 Hz1.5 kW 60 HzVariants 3DVS 60Pumping speed 60 m³/h 50 Hz70 m³/h 60 HzUltimate pressure 150 mbarRated motor power 1.5 kW 50 Hz1.8 kW 60 HzVariants 3DVS 80Pumping speed 80 m³/h 50 Hz90 m³/h 60 HzUltimate pressure 150 mbarRated motor power 2.2 kW 50 Hz3 kW 60 HzVariants 3DVS 100Pumping speed 100 m³/h 50 Hz115 m³/h 60 HzUltimate pressure 150 mbarRated motor power 3.4 kW 50 Hz4 kW 60 HzVariants 3DVS 140Pumping speed 130 m³/h 50 Hz150 m³/h 60 HzUltimate pressure 150 – 200 mbarRated motor power 3.4 kW 50 Hz4 kW 60 HzVariants 3DVS 12Pumping speed 14 m³/h 60 HzUltimate pressure 120 mbarRated motor power 0.45 kW 60 HzVariants 1No model matches these filters.
DVS series 10 models
About the series
Features and benefits of the DVS series
The series at a glance
With a nominal pumping speed of 5 to 140 m³/h and an achievable ultimate pressure of 120 to 150 mbar(a), depending on the model, the DVS series offers various performance levels for different vacuum requirements. The robust construction and compact design allow reliable integration into a wide variety of industrial vacuum systems.
With the DVS series, Atlas Copco demonstrates its commitment to innovation, reliability and efficiency, offering a first-class range of vacuum pumps characterised by a reduced CO2 footprint, lower life cycle costs, easy maintenance and high productivity.
Efficient
Experience the efficiency of the Atlas Copco DVS vacuum pump range. It is equipped with a direct drive that not only ensures low noise levels but also minimises the space required thanks to its compact design. The DVS rotary vane series also stands out for its extended service life, which allows longer maintenance intervals.
Robust design
The DVS vacuum pump range is characterised by a robust design. It has reliable graphite vanes that minimise wear. Thanks to the oil-free construction and modular design, the pumps are particularly easy to maintain. In addition, they offer a wide range of operational functions as standard, which underlines their versatility and performance.
Clean operation
The dry and oil-free vacuum technology of the DVS vacuum pumps guarantees environmental friendliness and maximum efficiency. As air-cooled pumps, they are particularly easy to maintain and deliver constant performance. Oil-free operation means there are no emissions or contamination, which safeguards the quality of your processes.
Operating principle
The DVS series is characterised by its dry-running technology, which uses dry graphite vanes. These vanes slide over the surface of the housing cylinder, forming a graphite layer on the surface. This allows the vanes to slide with low friction and minimal wear. In addition, the discharged air is normally filtered after compression to produce virtually particle-free air. The air is also passed through an air cooler to lower the temperature of the discharged air. This carefully developed design and the high-quality graphite alloy minimise energy consumption and wear while maximising the vacuum level. The result is a reliable pump with a long service life and extended maintenance intervals that meets even the highest demands.
The technology page shows the operating principle with an interactive drawing: Dry-running rotary vane vacuum pumps.
Standard operating conditions and performance
- Ambient temperature and intake air temperature: 0 to 40 °C
- Maximum permissible pressure: 0.6 to 1.0 bar (gauge pressure)
- Not suitable for use with liquids or humid air
