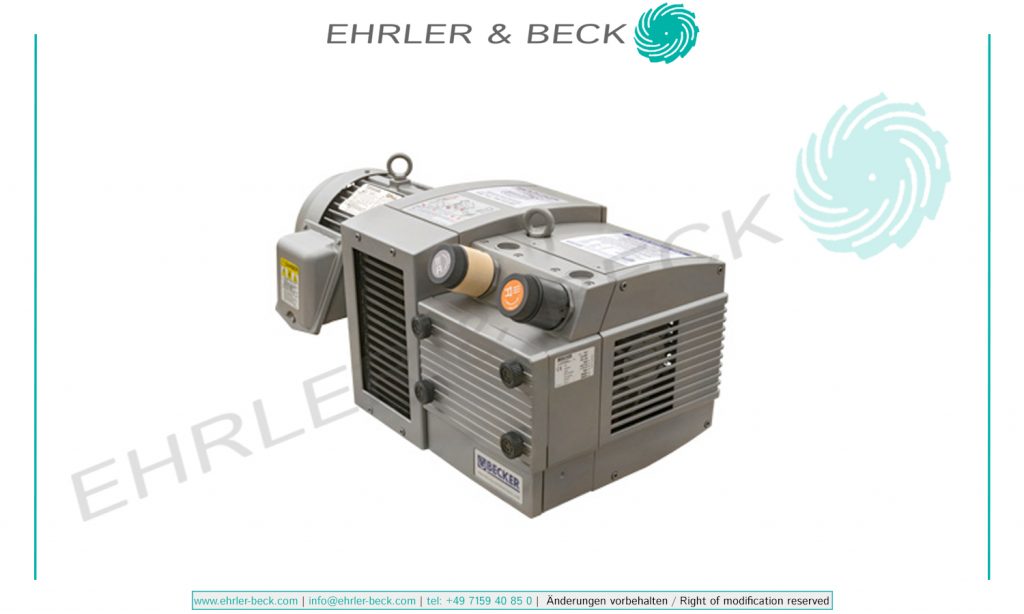

Becker DVT 3.100 – oil-free rotary vane pressure/vacuum pump

The DVT 3.100 works on the suction side and the pressure side at the same time: it delivers 103 m³/h at 50 Hz and 120 m³/h at 60 Hz up to ±0.6 bar relative. Becker offers it in two stages: ±0.5 bar with 5.5 kW (50 Hz) or 6.6 kW (60 Hz); ±0.6 bar with 5.5 kW (50 Hz) or 6.6 kW (60 Hz). Sound pressure level 76–77 dB(A) at 50 Hz or 77–78 dB(A) at 60 Hz. Weight: 71 kg without motor. Dimensions: width × height 470 × 336 mm, length depending on the motor (up to 951 mm according to the Becker catalogue 2026). Suction and pressure connection G 1 1/2".

Design

The pump runs dry, without oil in the pumping chamber. A vacuum regulating valve and a pressure regulating valve set the operating points on both sides; the inlet filter is integrated.

Use

The pump provides suction air and blast air at the same time – for applications that need both together.

Versions and accessories

• Second inlet: option with first and second inlet (G 3/4") and its own vacuum regulating valve
• External inlet filter: accessory, on request
• Acoustic hood SH 13: accessory, on request

Advice and service

Ehrler & Beck supports you in the selection, supplies accessories and spare parts and carries out maintenance and repair.

Pumping speed 50Hz	103
Pumping speed 60Hz	120
Length	95.1
Width	47
Height	33.6
Inlet connection flange	G 1 1/2"
Outlet connection flange	G 1 1/2"
Noise level	76 dB(A)
Cooling method	Air cooling
Oil type	Oil-free
