Screw vacuum pumps

Atlas Copco GHS VSD+ series

The Atlas Copco GHS VSD⁺ series comprises intelligent, oil-sealed screw vacuum pumps with variable speed drive (VSD). The modern screw technology combines high performance, energy efficiency and reliable operation at different operating pressures.

View 21 modelsSend an enquiry

  • 21Models
  • 400–5,136m³/h pumping speed at 50 Hz
  • 0.3mbar lowest ultimate pressure
  • 5.5–90kW rated motor power at 50 Hz

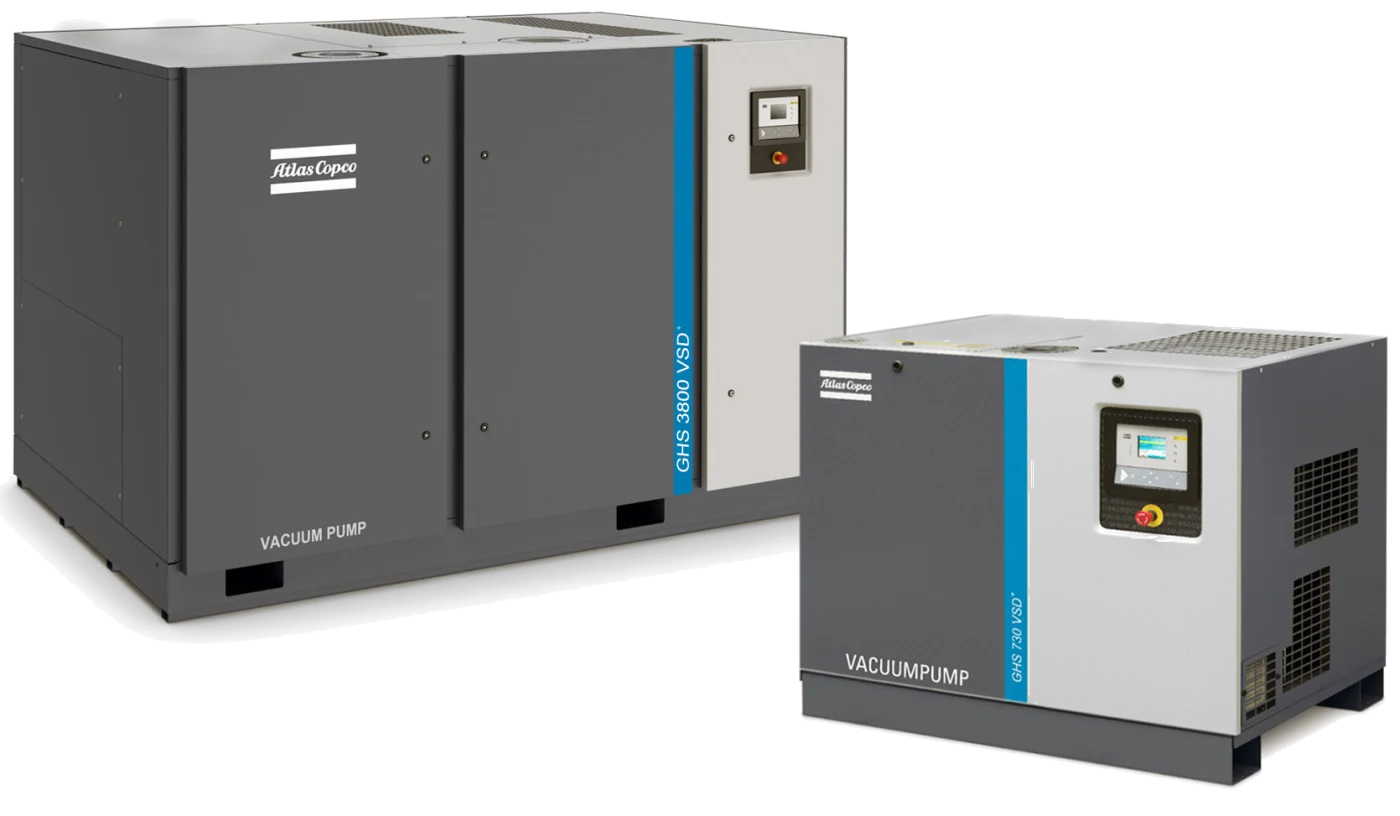

Atlas Copco GHS VSD+ series

Product overview

Products of the Atlas Copco GHS VSD+ series

Use the filters on the left to narrow the models down by their key figures. Each row leads to the model with its technical data and variants.

GHS 350 VSD+Pumping speed 400 m³/h 50 Hz400 m³/h 60 HzUltimate pressure 0.35 mbarRated motor power 5.5 kW 50 Hz5.5 kW 60 HzVariants 29
GHS 402 VSD+Pumping speed 467 m³/h 50 Hz467 m³/h 60 HzUltimate pressure 0.35 mbarRated motor power 5.5 – 7.5 kW 50 Hz5.5 – 7.5 kW 60 HzVariants 4
GHS 585 VSD+Pumping speed 560 m³/h 50 Hz560 m³/h 60 HzUltimate pressure 0.35 mbarRated motor power 7.5 kW 50 Hz7.5 kW 60 HzVariants 30
GHS 602 VSD+Pumping speed 640 m³/h 50 Hz640 m³/h 60 HzUltimate pressure 0.35 mbarRated motor power 7.5 – 11 kW 50 Hz7.5 – 11 kW 60 HzVariants 4
GHS 730 VSD+Pumping speed 730 m³/h 50 Hz730 m³/h 60 HzUltimate pressure 0.35 mbarRated motor power 11 kW 50 Hz11 kW 60 HzVariants 30
GHS 752 VSD+Pumping speed 805 m³/h 50 Hz805 m³/h 60 HzUltimate pressure 0.35 mbarRated motor power 11 – 15 kW 50 Hz11 – 15 kW 60 HzVariants 4
GHS 900 VSD+Pumping speed 870 m³/h 50 Hz870 m³/h 60 HzUltimate pressure 0.35 mbarRated motor power 15 kW 50 Hz15 kW 60 HzVariants 32
GHS 902 VSD+Pumping speed 917 m³/h 50 Hz917 m³/h 60 HzUltimate pressure 0.35 mbarRated motor power 15 – 18.5 kW 50 Hz15 – 18.5 kW 60 HzVariants 4
GHS 1002 VSD+Pumping speed 1,039 m³/h 50 Hz1,039 m³/h 60 HzUltimate pressure 0.35 mbarRated motor power 18.5 kW 50 Hz18.5 kW 60 HzVariants
GHS 1202 VSD+Pumping speed 1,172 m³/h 50 Hz1,172 m³/h 60 HzUltimate pressure 0.3 mbarRated motor power 18.5 kW 50 Hz18.5 kW 60 HzVariants 9
GHS 1300 VSD+Pumping speed 1,250 – 1,615 m³/h 50 Hz1,250 – 1,615 m³/h 60 HzUltimate pressure 0.35 mbarRated motor power 18 – 22 kW 50 Hz18 – 22 kW 60 HzVariants 33
GHS 1402 VSD+Pumping speed 1,383 m³/h 50 Hz1,383 m³/h 60 HzUltimate pressure 0.3 mbarRated motor power 22 kW 50 Hz22 kW 60 HzVariants 9
GHS 1602 VSD+Pumping speed 1,581 m³/h 50 Hz1,581 m³/h 60 HzUltimate pressure 0.3 mbarRated motor power 30 kW 50 Hz30 kW 60 HzVariants 9
GHS 1600 VSD+Pumping speed 1,590 – 1,811 m³/h 50 Hz1,590 – 1,811 m³/h 60 HzUltimate pressure 0.35 mbarRated motor power 28 – 30 kW 50 Hz28 – 30 kW 60 HzVariants 33
GHS 2002 VSD+Pumping speed 1,771 m³/h 50 Hz1,771 m³/h 60 HzUltimate pressure 0.3 mbarRated motor power 37 kW 50 Hz37 kW 60 HzVariants 9
GHS 1900 VSD+Pumping speed 1,810 m³/h 50 Hz1,810 m³/h 60 HzUltimate pressure 0.35 mbarRated motor power 37 kW 50 Hz37 kW 60 HzVariants 21
GHS 2700 VSD+Pumping speed 2,674 m³/h 50 Hz2,674 m³/h 60 HzUltimate pressure 0.35 mbarRated motor power 45 kW 50 Hz45 kW 60 HzVariants 8
GHS 3400 VSD+Pumping speed 3,268 m³/h 50 Hz3,268 m³/h 60 HzUltimate pressure 0.35 mbarRated motor power 55 kW 50 Hz55 kW 60 HzVariants 8
GHS 3800 VSD+Pumping speed 3,724 m³/h 50 Hz3,724 m³/h 60 HzUltimate pressure 0.35 mbarRated motor power 55 kW 50 Hz55 kW 60 HzVariants 9
GHS 4600 VSD+Pumping speed 4,494 m³/h 50 Hz4,494 m³/h 60 HzUltimate pressure 0.35 mbarRated motor power 75 kW 50 Hz75 kW 60 HzVariants 9
GHS 5400 VSD+Pumping speed 5,136 m³/h 50 Hz5,136 m³/h 60 HzUltimate pressure 0.35 mbarRated motor power 90 kW 50 Hz90 kW 60 HzVariants 9

Model comparison

Spare parts and accessories for the GHS VSD+ models are listed under Atlas Copco spare parts and accessories.

About the series

Features and benefits of the GHS VSD+ series

The series at a glance

The integrated VSD technology automatically adjusts the pump output to the actual demand and thus reduces energy consumption. At the same time, the innovative motor design and the high oil retention ensure quiet operation, low environmental impact and a clean working environment.

The compact plug-and-play design allows simple installation with a small footprint. Thanks to long maintenance intervals, low operating costs and optional energy recovery, the GHS VSD⁺ is particularly suitable for continuous industrial operation.

Typical applications are plastics processing, glass, bottling, canning, woodworking, packaging, printing and paper, and meat packaging.

With the GHS VSD+ series, Atlas Copco offers a powerful range of oil-sealed screw vacuum pumps developed for high energy efficiency, quiet operation and reliable performance. The oil-injected screw technology allows reliable vacuum generation in continuous operation with a low maintenance effort. Thanks to the integrated VSD+ drive, the pump speed adapts automatically to the actual vacuum demand, providing a particularly energy-efficient solution for industrial vacuum applications with varying load.

Oil-sealed screw technology

The Atlas Copco GHS VSD+ series works with oil-injected screw rotors. The oil seals, lubricates and cools; the high oil retention keeps it inside the pump and ensures a clean working environment.

High energy efficiency

The integrated VSD+ drive automatically adjusts the speed of the pump to the actual vacuum demand. This can significantly reduce energy consumption under varying load.

Powerful and reliable

The robust screw technology allows reliable vacuum generation and durable operation. Long service intervals contribute to a low maintenance effort and low operating costs.

Operating principle

The Atlas Copco GHS VSD+ series works on the principle of oil-sealed (oil-injected) screw vacuum technology. Two intermeshing screw rotors turn in opposite directions inside the pump housing and convey the gas drawn in from the inlet to the outlet; as they do so, the trapped volume becomes smaller and the gas is compressed.

Oil is injected into the compression chamber. It seals the gaps between the rotors and the housing, lubricates and carries away the heat of compression. An oil separator then retains the oil and returns it to the circuit; the high oil retention ensures a clean working environment.

The robust design enables reliable, long-lasting and low-maintenance operation. The integrated VSD+ drive automatically adjusts the speed to the actual vacuum demand and thereby reduces energy consumption, particularly under changing operating conditions.

The GHS VSD+ series is suitable for numerous industrial applications that call for high energy efficiency, reliable performance and flexible operation under varying load.

The technology page shows the operating principle with an interactive drawing: Screw vacuum pumps.

Standard operating conditions and performance

  • Ambient temperature: 0 to 40 °C, depending on model and version
  • Designed for oil-sealed industrial vacuum applications in continuous operation

Frequently asked questions

Questions about the Atlas Copco GHS VSD+ series

Which models does the Atlas Copco GHS VSD+ series comprise?
The Ehrler & Beck catalogue lists 21 models of the series. The product overview names each model with its key figures and the number of its variants; the model page shows the technical data.
Which pumping speeds does the series cover?
At 50 Hz the models cover pumping speeds from 400 to 5,136 m³/h. The figure comes from the product data of the individual models; values for 60 Hz, where available, are given in the product overview.
What ultimate pressure do the models of the series reach?
Depending on the model, the ultimate pressure lies between 0.3 and 0.35 mbar. The figures on the page of the respective model are decisive.
How does the technology of the series work?
The series belongs to the field of screw vacuum pumps. The technology page explains the operating principle with an interactive drawing and names all series of this technology.
Does Ehrler & Beck supply spare parts and service for the Atlas Copco GHS VSD+ series?
Yes. Ehrler & Beck supplies the models of the series as well as spare parts and accessories and takes care of maintenance and repair. For a quotation, an enquiry with the model or part number is all it takes.

Which model fits your process?

Tell us the gas to be conveyed, the working pressure and the flow rate you need – we will advise you on selection, spare parts and service.
