DVTLF 2.250
Outdated product This model is no longer part of the manufacturer's current range.
Current alternatives: VTLF 2.250, DVT 3.140
The Becker DVTLF 2.250 is a dry-running, air-cooled rotary vane pressure/vacuum pump: it draws 242 m³/h at 50 Hz (287 m³/h at 60 Hz) down to −0.5 bar and at the same time delivers pressure air up to +0.5 bar. Becker offered it with cooler (K) and with special cooler (KSK). The model is no longer part of the current Becker range. For pumps in service, Ehrler & Beck supports you with service and with the selection of a current model.
Request a quote for this product Read more
- Pumping speed 242 m³/h 50 Hz 287 m³/h 60 Hz
- Rated motor power 7.5 kW 50 Hz 9 kW 60 Hz
Becker DVTLF 2.250 – outdated model
The DVTLF 2.250 is neither in the Becker product range catalogue 01/2026 nor in Becker's product search; as combined dry-running pressure/vacuum pumps Becker today offers the T 4 and the DVT 3. Becker still publishes spare parts lists and service documents for the DVTLF. Becker names no successor. There is no combined pump of this size in the current range: the largest, the Becker DVT 3.140, draws 137 m³/h at 50 Hz. For vacuum duty alone, the Becker VTLF 2.250 (244 m³/h at 50 Hz) has the same frame size.Technical data

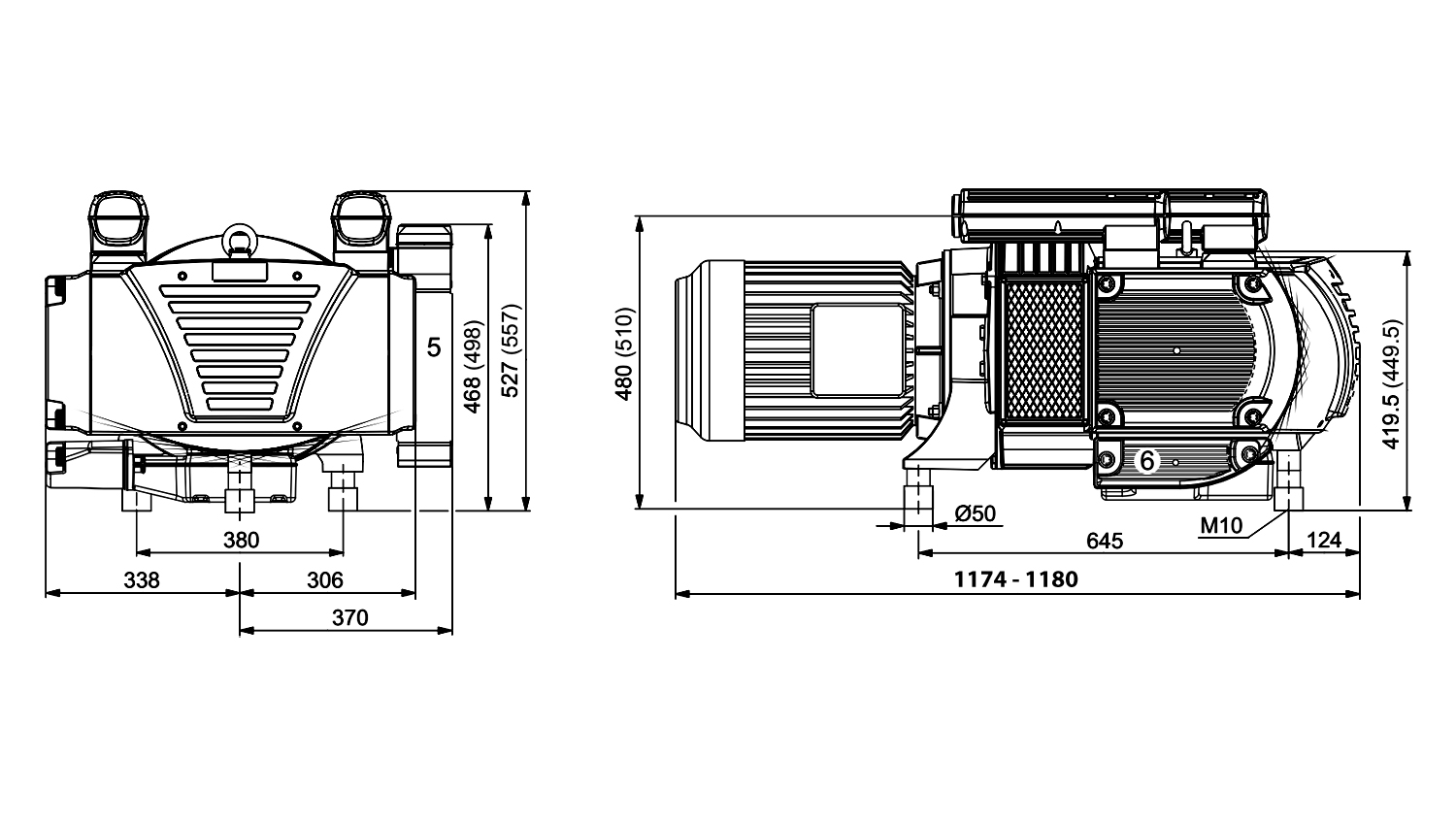

According to the Becker data sheet of 06.06.2018, the DVTLF 2.250 K draws 242 m³/h at 50 Hz and 287 m³/h at 60 Hz, the DVTLF 2.250 KSK 246 / 288 m³/h; vacuum and overpressure reach ±0.5 bar relative on both. The data sheet gives neither an absolute ultimate pressure nor the delivered air volume. Motor 7.5 kW at 50 Hz and 9.0 kW at 60 Hz; sound pressure level 79 / 80 dB(A) at 50 / 60 Hz. The pump weighs approx. 170 kg (K) or approx. 180 kg (KSK) without motor; the motor weighs 102 or 107 kg. Overall length with motor 1174 to 1180 mm, height 527 mm (KSK 557 mm); suction and pressure connection G 2 1/2". An inlet filter and a pressure relief valve and a vacuum relief valve, each with silencer, are built in. Motors according to the data sheet (motor number): 43089690300003TA (7.5 kW Δ400 V 50 Hz, 9.0 kW Δ460 V 60 Hz, IE3), 43089653300003TA (7.5 kW Δ200/Y350 V 50 Hz, 9.0 kW Δ220/Y380-400 V 60 Hz, IE3), 43189607300114TA (60 Hz only: 9.0 kW YY230/Y460 V, UL/CSA) and 43189654300114TA (60 Hz only: 9.0 kW Δ400 V, UL/CSA). For pumps in service, Ehrler & Beck supports you with service and with the selection of a current model.| Pumping speed 50Hz | 242 |
|---|---|
| Pumping speed 60Hz | 287 |
| Rated motor power 50Hz | 7.5 |
| Rated motor power 60Hz | 9 |
| Length | 118 |
| Height | 52.7 |
| Inlet connection flange | G 2 1/2" |
| Outlet connection flange | G 2 1/2" |
| Noise level | 79 dB(A) |
| Cooling method | Air cooling |
| Oil type | Oil-free |
Convert units: Nm³/h to m³/h
| Product name | Part number |
|---|---|
| Maintenance kit (DVTLF 2.250) (Index A) | 566500 22300 |
| Repair kit (DVTLF 2.250) (Index A) | 566300 22300 |
| Seal kit | 549000 52200 |
| Filter element | 909510 00000 |
| Connection fitting (variant, with cooler, with cooler and special cooler) | 060301 52200 |
| Cover (variant, with cooler and special cooler) | 040203 52200 |
| Gasket | 000300 52200 |
| Gasket | 007900 22200 |
| Gasket (without index) | 003100 52200 |
| Gasket (without index) | 008900 52200 |
| Gasket (without index) | 025500 52200 |
| Gasket (variant, with cooler and special cooler) | 008901 52200 |
| Gasket (variant, with cooler and special cooler) | 008902 52200 |
| Gasket (variant, with cooler and special cooler) | 913110 01000 |
| Gasket (variant, with cooler, with cooler and special cooler) | 008903 22200 |
| Sealing hose, 45x2 | 911310 00000 |
| Spacer disc (variant, with cooler and special cooler) | 011400 22200 |
| Spacer disc (variant, with cooler and special cooler) | 011401 52200 |
| Spacer disc (variant, with cooler and special cooler) | 011402 52200 |
| Spacer disc set | 511400 22200 |
| Spacer | 011400 52200 |
| Pressure relief valve | 534002 99619 |
| Spring washer | 951703 00000 |
| Spring washer | 951710 00000 |
| Grease transport ring | 068900 91000 |
| Filter cover | 040200 52200 |
| Filter cover | 040201 52200 |
| Filter housing | 040100 52200 |
| Filter housing | 040103 52200 |
| Filter housing (variant, with cooler and special cooler) | 004600 52200 |
| Housing | 000100 52200 |
| Threaded flange | 007801 52200 |
| Threaded flange, pressure connection (index A) | 007800 52200 |
| Rubber moulded part | 912801 00000 |
| Rubber moulded part | 951925 00000 |
| Rubber buffer | 741303 00000 |
| Holder | 967059 00000 |
| Handle | 921501 50000 |
| Canopy | 918300 52200 |
| Canopy | 918304 52200 |
| Hex socket screw | 945321 00000 |
| Hex socket screw | 945333 00000 |
| Hex socket screw | 945351 00000 |
| Hex socket screw | 945363 00000 |
| Socket head screw (variant, with cooler and special cooler) | 945376 00000 |
| Socket head screw (variant, with cooler, with cooler and special cooler) | 945330 04000 |
| Socket head screw (variant, with cooler, with cooler and special cooler) | 945345 00000 |
| Socket head screw, DIN 912 M10x25 | 945349 00000 |
| Socket head screw, DIN 912 M10x30 | 945350 00000 |
| Socket head screw, DIN 912 M6x55 | 945324 00000 |
| Socket head screw, DIN 912 M8x100 (index A) | 945381 00000 |
| Socket head screw, DIN 912 M8x140 | 945346 00000 |
| Socket head screw, DIN 912 M8x50 | 945336 00000 |
| Cap (optional) | 734900 99522 |
| Carbon vane kit | 901367 01005 |
| Carbon vane set (index A) | 901325 00005 |
| Rotor | 020000 22200 |
| Cooler (variant, with cooler, with cooler and special cooler) | 560201 22200 |
| Coupling half with fan | 544503 22200 |
| Coupling ring | 902200 20000 |
| Bearing cover | 001000 52200 |
| Bearing cover | 001101 52200 |
| Lantern | 053200 52200 |
| Fan cowl | 960700 52200 |
| Air guide hood | 920800 52200 |
| Connection flange | 014905 52200 |
| Motor coupling, Ø 38 mm (B5/300) | 902100 22200 |
| Motor coupling, Ø 42 mm (5.5 ... 11 kW) | 902101 22200 |
| Motor coupling, Ø 48 mm (15 kW) | 902102 22200 |
| Key, DIN 6885 B10x8x50 | 947812 00000 |
| Grooved dowel pin | 948742 00000 |
| Filter element | 909512 00000 |
| Eye nut, M16 | 951605 00000 |
| Non-return valve (optional) | 535003 99619 |
| Silencer | 539801 52200 |
| Hose | 042600 10100 |
| Hose nozzle | 008102 52200 |
| Hose nozzle | 008103 52200 |
| Grease nipple, DIN 3405 | 949001 00000 |
| Lubrication hose | 742601 52200 |
| Hexagon nut | 947107 00000 |
| Hexagon screw, DIN 933 M10x25 | 945236 00000 |
| Hexagon screw, DIN 933 M10x35 | 945238 00000 |
| Hexagon screw, DIN 933 M8x25 | 945230 00000 |
| Side cover | 000700 52200 |
| Side cover | 000800 52200 |
| Tension sleeve | 952006 00000 |
| Special grease (grease gun, 50 g) (index A) | 743305 00000 |
| Special grease (grease gun, 50 g) (without index) | 743303 00000 |
| Dust separator (optional) | 909541 00000 |
| Stud | 946930 00000 |
| Stud | 946945 00000 |
| Stud | 946962 00000 |
| Stud (variant, with cooler and special cooler) | 946973 00000 |
| Stud (variant, with cooler and special cooler) | 946975 00000 |
| Stud - M10x90 (variant, with cooler and special cooler) | 946969 00000 |
| Stud, DIN 939 M8x50 (index A) | 946919 00000 |
| Stud, DIN 939 M8x55 (without index) | 946920 00000 |
| Stud, DIN 939 M8x65 (index A) | 946976 00000 |
| Stud, DIN 939 M8x70 (without index) | 946968 00000 |
| Plug (index A) | 912888 00000 |
| Washer | 949450 00000 |
| Washer, DIN 7349 | 949455 00000 |
| Washer | 949409 00000 |
| Washer | 949453 00000 |
| Vacuum safety valve | 535001 99619 |
| Rolling bearing | 906617 20000 |
| Rolling bearing | 906649 00000 |
| Shaft seal, DF45x62x7 | 906577 00000 |
| Shaft end screw | 901809 00000 |
| Shaft end screw | 945270 00000 |
| Centring bush | 064900 30200 |
| Intermediate flange (B5/300) | 003600 52200 |
