Busch TYR series
The Busch TYR series at a glance: 16 models from the field of rotary lobe blowers – with technical data, variants and the option to send an enquiry.
- 16Models
- 535–4,000m³/h pumping speed at 50 Hz
- 11–90kW rated motor power at 50 Hz
Product overview
Products of the Busch TYR series
Use the filters on the left to narrow the models down by their key figures. Each row leads to the model with its technical data and variants.
TYR WT 0100 CPPumping speed 535 m³/h 50 Hz535 m³/h 60 HzRated motor power 18.5 kW 50 Hz18.5 kW 60 HzTYR WT 0100 CVPumping speed 538 m³/h 50 Hz538 m³/h 60 HzRated motor power 11 kW 50 Hz11 kW 60 HzTYR WT 0150 CPPumping speed 808 m³/h 50 Hz808 m³/h 60 HzRated motor power 30 kW 50 Hz30 kW 60 HzTYR WT 0150 CVPumping speed 822 m³/h 50 Hz822 m³/h 60 HzRated motor power 18.5 kW 50 Hz18.5 kW 60 HzTYR WT 0280 CVPumping speed 1,330 m³/h 50 Hz1,330 m³/h 60 HzRated motor power 30 kW 50 Hz30 kW 60 HzTYR WT 0280 CPPumping speed 1,355 m³/h 50 Hz1,355 m³/h 60 HzRated motor power 45 kW 50 Hz45 kW 60 HzTYR WT 0390 CPPumping speed 1,793 m³/h 50 Hz1,793 m³/h 60 HzRated motor power 55 kW 50 Hz55 kW 60 HzTYR WT 0390 CVPumping speed 1,907 m³/h 50 Hz1,907 m³/h 60 HzRated motor power 37 kW 50 Hz37 kW 60 HzTYR WT 0600 CPPumping speed 2,973 m³/h 50 Hz2,973 m³/h 60 HzRated motor power 90 kW 50 Hz90 kW 60 HzTYR WT 0600 CVPumping speed 3,097 m³/h 50 Hz3,097 m³/h 60 HzRated motor power 55 kW 50 Hz55 kW 60 HzTYR WT 0600 CP PLUSPumping speed 3,100 m³/h 50 Hz3,100 m³/h 60 HzRated motor power 30 kW 50 Hz30 kW 60 HzTYR WT 0600 CV PLUSPumping speed 3,100 m³/h 50 Hz3,100 m³/h 60 HzRated motor power 18.5 kW 50 Hz18.5 kW 60 HzTYR WT 0730 CPPumping speed 3,972 m³/h 50 Hz3,972 m³/h 60 HzRated motor power 90 kW 50 Hz90 kW 60 HzTYR WT 0730 CVPumping speed 3,992 m³/h 50 Hz3,992 m³/h 60 HzRated motor power 75 kW 50 Hz75 kW 60 HzTYR WT 0730 CP PLUSPumping speed 4,000 m³/h 50 Hz4,000 m³/h 60 HzRated motor power 37 kW 50 Hz37 kW 60 HzTYR WT 0730 CV PLUSPumping speed 4,000 m³/h 50 Hz4,000 m³/h 60 HzRated motor power 30 kW 50 Hz30 kW 60 HzNo model matches these filters.
TYR series 16 models
About the series
Technology and features

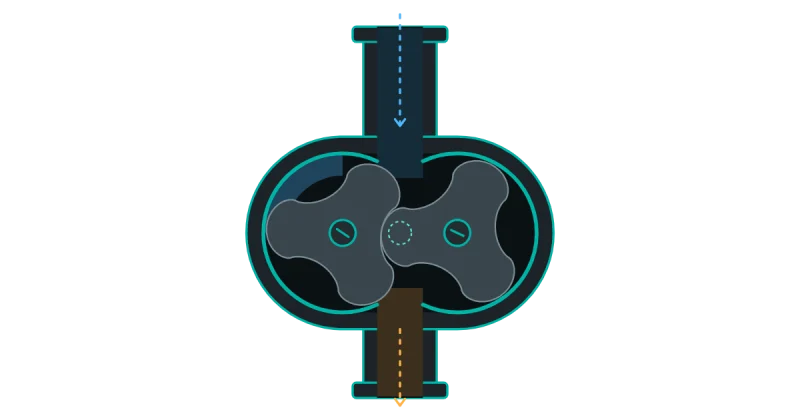

Operating principle
Rotary lobe blowers convey the air oil-free from the inlet to the outlet with two lobes rotating in opposite directions without contact. They deliver large volume flows at moderate differential pressures and are suitable for vacuum and pressure operation.
The technology page shows the operating principle with an interactive drawing: Rotary lobe blowers.
Features of the series
- Efficient: flow-optimised blower stages, low energy consumption, little maintenance
- Quiet: noise reduction concept with integrated inlet and outlet silencers
- Robust: durable construction, contact-free operating principle, base frame with forklift pockets
Manufacturer's data as given in the product descriptions of the individual models.
Frequently asked questions
Questions about the Busch TYR series
Which models does the Busch TYR series comprise?
Which pumping speeds does the series cover?
How does the technology of the series work?
Does Ehrler & Beck supply spare parts and service for the Busch TYR series?
Which model fits your process?
Tell us the gas to be conveyed, the working pressure and the flow rate you need – we will advise you on selection, spare parts and service.
