DVTLF 2.500
Outdated product This model is no longer part of the manufacturer's current range.
Current alternatives: VTLF 2.500, DVT 3.140
The Becker DVTLF 2.500 is a dry-running, air-cooled rotary vane pressure/vacuum pump: it draws 500 m³/h at 50 Hz (575 m³/h at 60 Hz) down to −0.5 bar and at the same time delivers pressure air up to +0.5 bar. The model is no longer part of the current Becker range. For pumps in service, Ehrler & Beck supports you with service and with the selection of a current model.
Request a quote for this product Read more
- Pumping speed 500 m³/h 50 Hz 575 m³/h 60 Hz
- Rated motor power 15 kW 50 Hz 17.3 kW 60 Hz
Becker DVTLF 2.500 – outdated model
The DVTLF 2.500 is neither in the Becker product range catalogue 01/2026 nor in Becker's product search; as combined dry-running pressure/vacuum pumps Becker today offers the T 4 and the DVT 3. Becker still publishes spare parts lists and service documents for the DVTLF. Becker names no successor. There is no combined pump of this size in the current range: the largest, the Becker DVT 3.140, draws 137 m³/h at 50 Hz. For vacuum duty alone, the Becker VTLF 2.500 (495 m³/h at 50 Hz) has the same frame size.Technical data

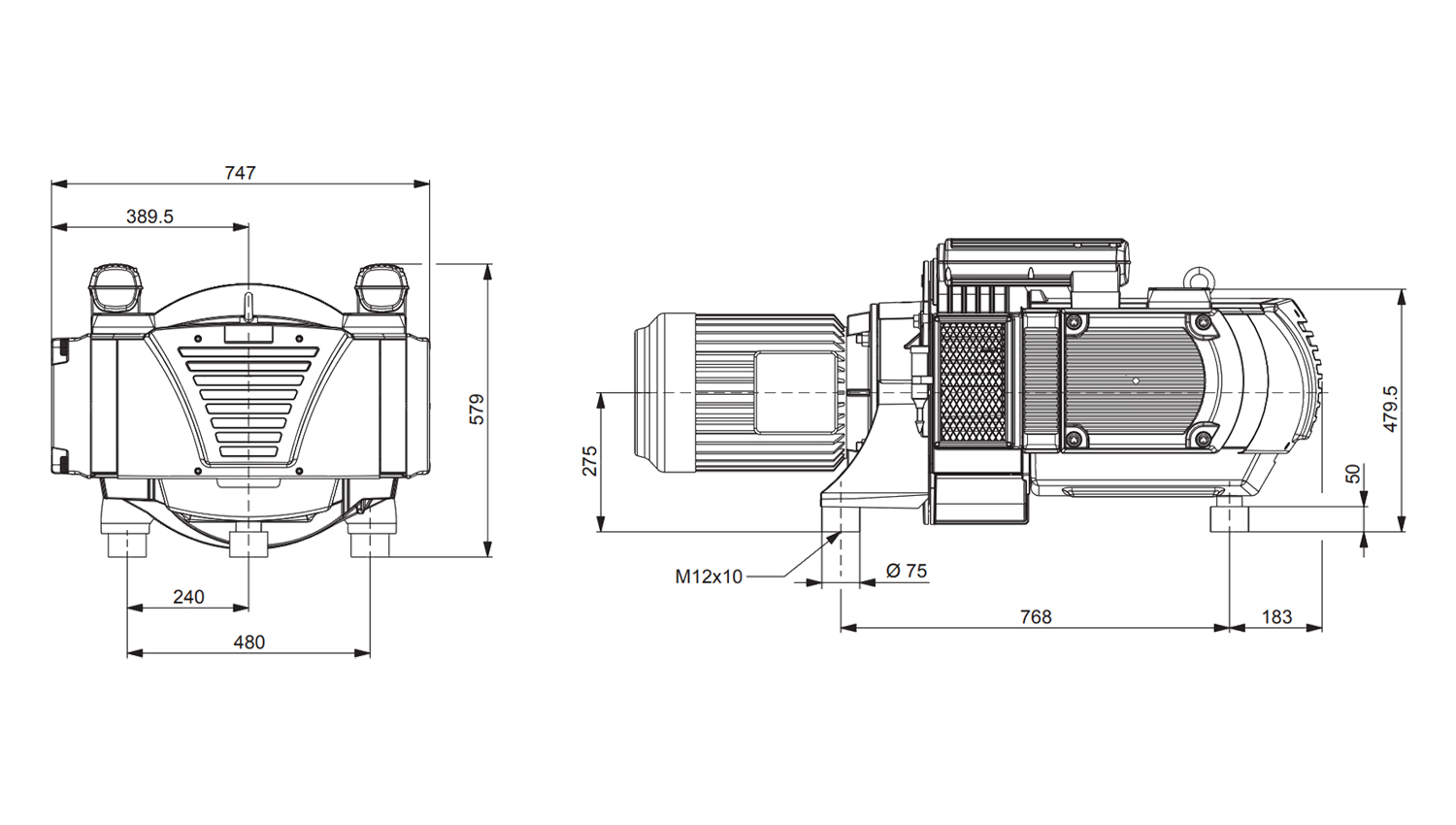

According to the Becker data sheet of 18.02.2013, the DVTLF 2.500 draws 500 m³/h at 50 Hz and 575 m³/h at 60 Hz; vacuum and overpressure reach ±0.5 bar relative. The data sheet gives no absolute ultimate pressure; Becker gives the delivered air volume on request. Motor 15.0 kW at 50 Hz and 17.3 kW at 60 Hz; sound pressure level 80 / 82 dB(A) at 50 / 60 Hz; weight 420 kg. Width 747 mm, height 579 mm, length depending on the motor make; suction and pressure connection G 4", G 2" at the relief valves. An inlet filter and a pressure relief valve and a vacuum relief valve with silencer are built in; the DVTLF 2.500/0-69 also has a dust separator. Motor according to the data sheet: number 43479690300005GB, 15.0 kW at 50 Hz (400/690 V) and 17.3 kW at 60 Hz (460 V), 980 / 1180 min⁻¹, IP 55, IE2.Pumping speed in combined operation
How much air the pump draws depends on the vacuum and the overpressure at the same time (suction air volume in m³/h according to the data sheet, reference 1000 mbar and 20 °C, tolerance ±5 %):| Overpressure | 50 Hz, vacuum 0 / −0.25 / −0.5 bar | 60 Hz, vacuum 0 / −0.25 / −0.5 bar |
|---|---|---|
| 0 bar | 499 / 348 / 206 | 578 / 420 / 251 |
| +0.25 bar | 483 / 331 / 191 | 564 / 404 / 235 |
| +0.5 bar | 464 / 314 / 176 | 537 / 373 / 210 |
| Pumping speed 50Hz | 500 |
|---|---|
| Pumping speed 60Hz | 575 |
| Rated motor power 50Hz | 15 |
| Rated motor power 60Hz | 17.3 |
| Weight | 420 |
| Length | 151 |
| Width | 74.7 |
| Height | 57.9 |
| Inlet connection flange | G 4" |
| Outlet connection flange | G 4" |
| Noise level | 80 dB(A) |
| Cooling method | Air cooling |
| Oil type | Oil-free |
Convert units: Nm³/h to m³/h
| Product name | Part number |
|---|---|
| Spacer bolt | 832800 21000 |
| Shim | 917162 00000 |
| Sealing ring | 913112 50100 |
| Sealing ring | 948074 00000 |
| Gasket | 000300 52200 |
| Gasket | 003100 52300 |
| Gasket | 007900 22200 |
| Gasket | 007900 22500 |
| Gasket | 008900 52200 |
| Gasket | 025500 52300 |
| Gasket | 917200 20000 |
| Seal kit | 549000 52300 |
| Spacer ring 45x55x0.025 | 911450 00000 |
| Spacer ring 45x55x0.05 | 911451 00000 |
| Spacer ring 65x85x0.025 | 911413 60000 |
| Spacer ring 65x85x0.05 | 911413 70000 |
| Spacer | 011400 52300 |
| Nozzle | 953140 00000 |
| Grease transport ring | 068901 22500 |
| Filter cover | 040200 52200 |
| Filter cover | 040201 52200 |
| Filter box | 040100 52300 |
| Filter box | 040103 52300 |
| Filter element | 909510 20000 |
| Filter element | 909597 00000 |
| Housing | 000100 52300 |
| Threaded flange | 007800 52300 |
| Threaded flange | 007801 52200 |
| Rubber moulded part | 951925 00000 |
| Rubber buffer | 741341 00000 |
| Rubber buffer | 951919 00000 |
| Rubber buffer | 951933 00000 |
| Handle | 921501 50000 |
| Canopy | 918300 52300 |
| Canopy | 918303 52300 |
| Hex socket screw | 945318 00000 |
| Hex socket screw | 945319 00000 |
| Hex socket screw | 945322 00000 |
| Hex socket screw | 945328 00000 |
| Hex socket screw | 945333 00000 |
| Hex socket screw | 945335 00000 |
| Hex socket screw | 945363 00000 |
| Socket head screw M12x45 | 945369 00000 |
| Socket head screw, DIN 912 M10x25 | 945349 00000 |
| Socket head screw, DIN 912 M6x55 | 945324 00000 |
| Socket head screw, DIN 912 M8x140 | 945346 00000 |
| Socket head screw, DIN 912 M8x50 | 945336 00000 |
| Cap | 834900 99534 |
| Conical seat washer, DIN 6319-12-G | 950353 00000 |
| Rotor | 020000 52300 |
| Spherical washer | 950356 00000 |
| Coupling | 002103 22500 |
| Coupling with fan | 544500 22500 |
| Coupling ring | 902230 00000 |
| Bearing 3209 C3 GBB20 | 906636 00000 |
| Bearing NU2211 E GBB30 | 906614 00000 |
| Bearing cover | 001000 52300 |
| Bearing cover | 001100 22500 |
| Bearing cover | 001101 52300 |
| Lantern | 053200 52300 |
| Fan cowl | 960700 52200 |
| Air guide hood | 920800 52200 |
| Connection flange | 014900 52300 |
| Motor flange, > 18 kW | 014901 52300 |
| Key | 947814 00000 |
| Grooved dowel pin | 948743 00000 |
| Eye nut, M16 | 951605 00000 |
| Non-return valve | 535006 99619 |
| Silencer | 539801 52200 |
| Vanes (set) | 901373 01008 |
| Hose | 742600 52300 |
| Hose nozzle | 008102 52200 |
| Hose nozzle | 008103 52200 |
| Grease nipple, DIN 3405 | 949001 00000 |
| Hexagon nut | 947109 00000 |
| Hexagon nut M6 | 947104 02000 |
| Hexagon screw M12x40 | 945361 00000 |
| Hexagon screw, DIN 933 M8x25 | 945230 00000 |
| Side cover | 000700 52300 |
| Side cover | 000800 52300 |
| Circlip | 948265 00000 |
| Sieve | 908000 10000 |
| Special grease (grease gun, 50 g) | 743303 00000 |
| Dust separator | 909510 10000 |
| Stud | 946962 00000 |
| Stud M12x40 | 951048 00000 |
| Stud, DIN 939 M8x50 | 946919 00000 |
| Stud, DIN 939 M8x65 | 946976 00000 |
| Washer | 947509 00000 |
| Washer | 947504 00000 |
| Washer | 947507 00000 |
| Washer | 949407 00000 |
| Shaft seal | 906580 00000 |
| Shaft end screw | 901809 00000 |
| Shaft end screw | 945270 00000 |
| Angle bracket | 002501 52300 |
| Dowel pin | 947654 00000 |
