DVTLF 2.400

Becker DVTLF 2.400 – outdated model

The DVTLF 2.400 is neither in the Becker product range catalogue 01/2026 nor in Becker's product search; as combined dry-running pressure/vacuum pumps Becker today offers the T 4 and the DVT 3. Becker still publishes spare parts lists and service documents for the DVTLF. Becker names no successor. There is no combined pump of this size in the current range: the largest, the Becker DVT 3.140, draws 137 m³/h at 50 Hz. For vacuum duty alone, the Becker VTLF 2.400 (390 m³/h at 50 Hz) has the same frame size.

Technical data

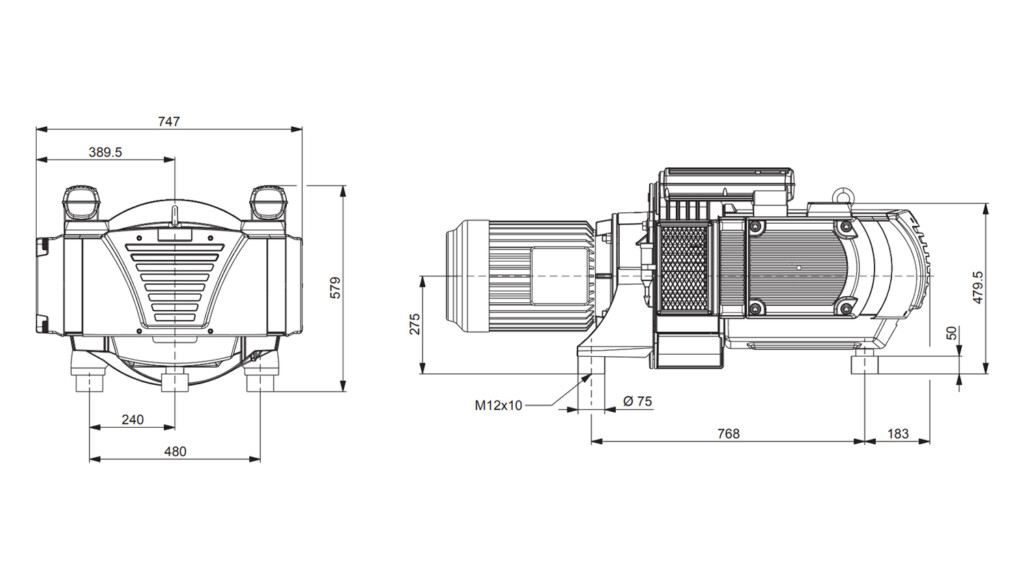

According to the Becker data sheet of 18.02.2013, the DVTLF 2.400 draws 380 m³/h at 50 Hz and 455 m³/h at 60 Hz; vacuum and overpressure reach ±0.5 bar relative. The data sheet gives no absolute ultimate pressure; Becker gives the delivered air volume on request. Motor 11.0 kW at 50 Hz and 12.5 kW at 60 Hz; sound pressure level 79 / 81 dB(A) at 50 / 60 Hz; weight 422 kg. Width 747 mm, height 579 mm, length depending on the motor make; suction and pressure connection G 4", G 2" at the relief valves. An inlet filter and a pressure relief valve and a vacuum relief valve with silencer are built in; the DVTLF 2.400/0-69 also has a dust separator. Motor according to the data sheet: number 43219890300, 11.0 kW at 50 Hz and 12.5 kW at 60 Hz, 400/690 V, 720 / 864 min⁻¹, IP 55.

Pumping speed in combined operation

How much air the pump draws depends on the vacuum and the overpressure at the same time (suction air volume in m³/h according to the data sheet, reference 1000 mbar and 20 °C, tolerance ±5 %): For pumps in service, Ehrler & Beck supports you with service and with the selection of a current model.

Pumping speed 50Hz	380
Pumping speed 60Hz	455
Rated motor power 50Hz	11
Rated motor power 60Hz	12.5
Weight	422
Length	147.9
Width	74.7
Height	57.9
Inlet connection flange	G 4"
Outlet connection flange	G 4"
Noise level	79 dB(A)
Cooling method	Air cooling
Oil type	Oil-free
