Claw vacuum pumps

Atlas Copco DZQ series

The Atlas Copco DZQ series at a glance: one model from the field of claw vacuum pumps – with technical data, variants and the option to send an enquiry.

To the modelSend an enquiry

  • 1Model
  • 80m³/h pumping speed at 50 Hz
  • 0.03mbar ultimate pressure
  • 4kW rated motor power at 50 Hz

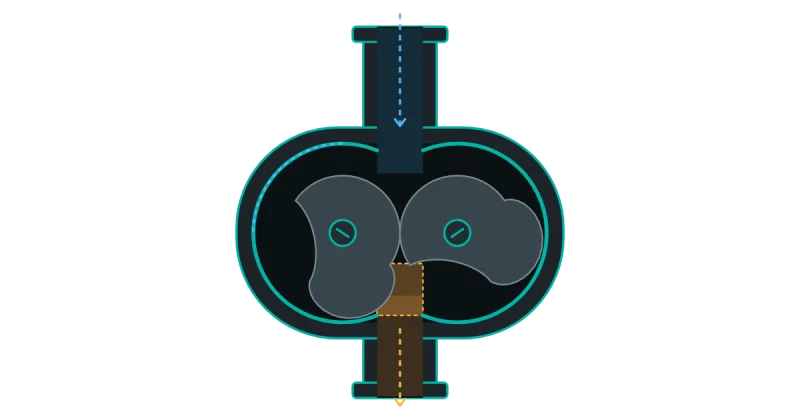

Operating principle: Claw vacuum pumps (schematic drawing)
Operating principle: Claw vacuum pumps

Product overview

Products of the Atlas Copco DZQ series

Each row leads to the model with its technical data and variants.

DZQ 80Pumping speed 80 m³/h 50 Hz94 m³/h 60 HzUltimate pressure 0.03 mbarRated motor power 4 kW 50 Hz4 kW 60 HzVariants 1

About the series

Technology and features

Operating principle

Claw vacuum pumps were developed for industrial applications that require constant vacuum, high pumping speed and completely oil-free compression. Two claw rotors running without contact compress the air without oil or other operating fluids in the pump chamber, which saves a considerable amount of energy compared with conventional designs. Explosion-proof versions are available for many series.

The technology page shows the operating principle with an interactive drawing: Claw vacuum pumps.

Features of the series

  • Pumps large quantities of condensable vapours in continuous operation
  • Low operating costs and easy maintenance
  • High tolerance to dust and particles from the process
  • IE4 motor (since August 2025) for lower energy consumption
  • Dry claw principle: no oil in the pump chamber, no oil change and no waste oil disposal
  • Water-cooled, purge gas connection for nitrogen or compressed air

Manufacturer's data as given in the product descriptions of the individual models.

Frequently asked questions

Questions about the Atlas Copco DZQ series

Which models does the Atlas Copco DZQ series comprise?
The Ehrler & Beck catalogue lists one model of the series. The product overview names each model with its key figures and the number of its variants; the model page shows the technical data.
Which pumping speeds does the series cover?
At 50 Hz the pumping speed is 80 m³/h. The figure comes from the product data of the individual models; values for 60 Hz, where available, are given in the product overview.
What ultimate pressure do the models of the series reach?
The ultimate pressure is 0.03 mbar. The figures on the page of the respective model are decisive.
How does the technology of the series work?
The series belongs to the field of claw vacuum pumps. The technology page explains the operating principle with an interactive drawing and names all series of this technology.
Does Ehrler & Beck supply spare parts and service for the Atlas Copco DZQ series?
Yes. Ehrler & Beck supplies the models of the series as well as spare parts and accessories and takes care of maintenance and repair. For a quotation, an enquiry with the model or part number is all it takes.

Which model fits your process?

Tell us the gas to be conveyed, the working pressure and the flow rate you need – we will advise you on selection, spare parts and service.
