Atlas Copco DRB series
The Atlas Copco DRB series at a glance: 4 models from the field of Roots vacuum pumps – with technical data, variants and the option to send an enquiry.
- 4Models
- 253–2,050m³/h pumping speed at 50 Hz
- 1.1–7.5kW rated motor power at 50 Hz
Product overview
Products of the Atlas Copco DRB series
Each row leads to the model with its technical data and variants.

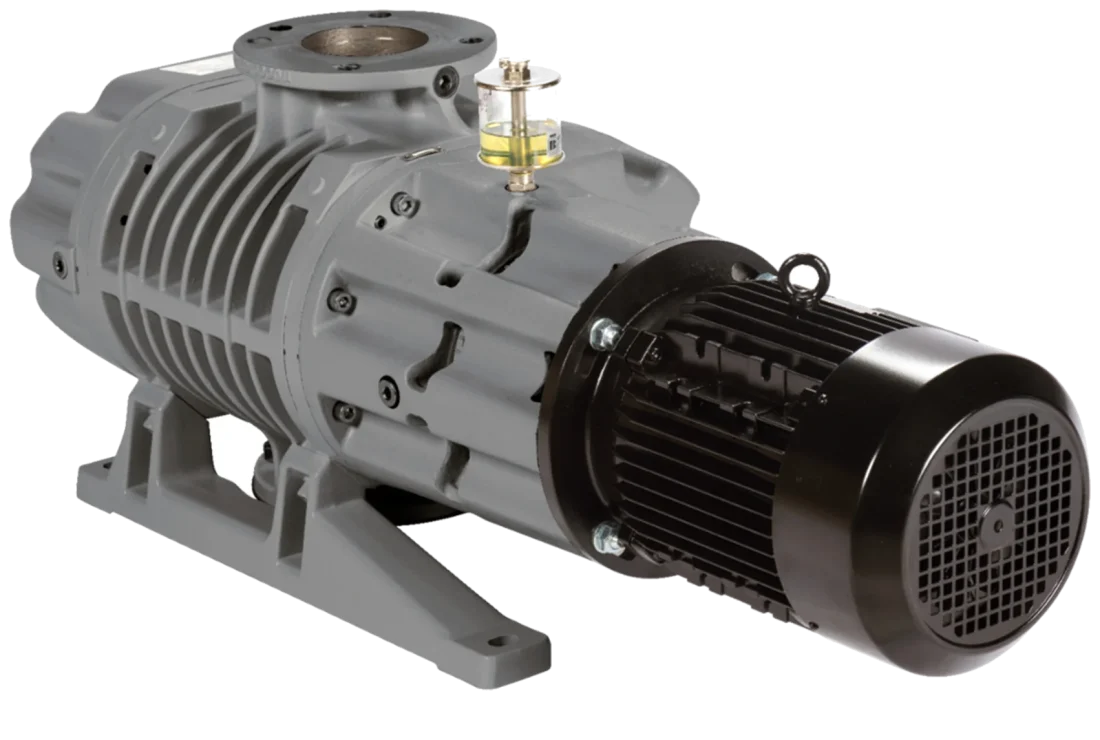

DRB 250Pumping speed 253 m³/h 50 Hz304 m³/h 60 HzRated motor power 1.1 kW 50 Hz1.1 kW 60 HzVariants 2
DRB 500Pumping speed 505 m³/h 50 Hz606 m³/h 60 HzRated motor power 2.2 kW 50 Hz2.2 kW 60 HzVariants 2DRB 1000Pumping speed 1,000 m³/h 50 Hz1,200 m³/h 60 HzRated motor power 4 kW 50 Hz4 kW 60 HzVariants 2DRB 2000Pumping speed 2,050 m³/h 50 Hz2,460 m³/h 60 HzRated motor power 7.5 kW 50 Hz7.5 kW 60 HzVariants 2About the series
Technology and features
Operating principle
Roots vacuum pumps, also known as vacuum boosters, belong to the dry-running vacuum pumps. Together with a backing pump they cover a wide range of applications in which high pumping speeds are required. The two Roots rotors operate entirely without contact and without sealing liquid in the pump chamber; on most models only the timing gears and bearings are oil-lubricated.
The technology page shows the operating principle with an interactive drawing: Roots vacuum pumps.
Features of the series
- Three-phase motor of efficiency class IE3, flange-mounted; without motor on request
- Integrated bypass (pressure equalisation valve): switch-on at atmospheric pressure together with the backing pump, protection against thermal overload
- Air-cooled, no utilities required
- Robust bearing arrangement for smooth running, long maintenance intervals
- Vertical or horizontal gas flow, conversion on site possible
- Dry-running Roots principle: oil-free pump chamber, gear chamber and pump chamber separated by radial shaft seals
Manufacturer's data as given in the product descriptions of the individual models.
Frequently asked questions
Questions about the Atlas Copco DRB series
Which models does the Atlas Copco DRB series comprise?
Which pumping speeds does the series cover?
How does the technology of the series work?
Does Ehrler & Beck supply spare parts and service for the Atlas Copco DRB series?
Which model fits your process?
Tell us the gas to be conveyed, the working pressure and the flow rate you need – we will advise you on selection, spare parts and service.
