ZRV – Vakuum-Regulierventil
Original Vakuumregelventile von Elmo Rietschle – ein Gardner Denver Produkt
Das Vakuumregelventil ZRV dient zur Einstellung des erforderlichen Saugdrucks und je nach Ausführung als Begrenzer für maximales Vakuum.

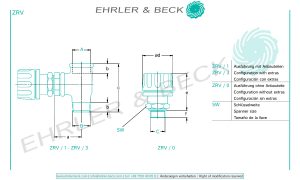

ZRK | a | b | c | ∅d | e | f |
6/0 | – | – | – | 19 | 32 – 38 | 7 |
12/0 | – | – | – | 34 | 42 – 49 | 6 |
12/1 | 24 | 10 | 56 | 34 | 42 – 49 | 6 |
13/0 | – | – | – | 42 | 46 – 49 | 10 |
13/1 | 27 | 13 | 64 | 42 | 46 – 49 | 10 |
13/2 | 43 | 15 | 75 | 42 | 46 – 49 | 10 |
20/0 | – | – | – | 55 | 56 – 65 | 13 |
20/1 | 49 | 17 | 87 | 55 | 56 – 65 | 13 |
25/0 | – | – | – | 70 | 66 – 84 | 13 |
25/1 | 57 | 19 | 103 | 70 | 66 – 84 | 13 |
25/2 | 62 | 19 | 115 | 70 | 66 – 84 | 13 |
25/3 | 70 | 24 | 128 | 70 | 66 – 84 | 13 |
50/0 | – | – | – | 74 | 80 | 19 |
50/1 | 82 | 27 | 186 | 74 | 80 | 19 |
50/2 | 92 | 30 | 209 | 74 | 80 | 19 |
65/0 | – | – | – | 74 | 80 | 19 |
80/0 | – | – | – | 74 | 80 | 19 |
ZRV | A | B | C | Variante mit Einstellbereich bis 50 mbar (abs.) – ZRV (05) |
Schlüsselweite – SW |
---|---|---|---|---|---|
6/0 | – | – | G 1/8 | 201814-0000 | 13 |
12/0 | – | – | G 3/8 | 202183-0000 | 24 |
12/1 | Rp 3/8 | R 3/8 | G 3/8 | 202183-0100 | 24 |
13/0 | – | – | G ½ | 208745-0000 | 32 |
13/1 | Rp 1/2 | R ½ | – | 208745-0100 | 32 |
13/2 | Rp 3/4 | R ¾ | – | 208745-0200 | 32 |
20/0 | – | – | G ¾ | 200609-0000 | 41 |
20/1 | Rp 1 | R 1 | – | 200609-0100 | 41 |
25/0 | – | – | G 1 | 202228-0000 | 55 |
25/1 | Rp 1¼ | R 1¼ | – | 202228-0100 | 55 |
25/2 | Rp 1½ | R 1½ | – | 202228-0200 | 55 |
25/3 | Rp 2 | R 2 | – | 202228-0300 | 55 |
50/0 | – | – | G 2 | 204222-0000 | – |
50/1 | Rp 2½ | R 2½ | – | 204222-0100 | – |
50/2 | Rp 3 | R 3 | – | 204222-0200 | – |
65/0 | – | – | G 2½ | 206739-0000 | – |
80/0 | – | – | G 3 | 206740-0000 | – |
